Description
*PLEASE NOTE - THIS IS AN UNBOXED DEAL. THE UNIT IS STILL NEW AND FULLY COVERED BY OUR 3 MONTH MANUFACTURER WARRANTY. THE BOXES HAVE BEEN OPENED TO DISPLAY THE UNIT IN OUR SHOWROOM*
Upgrade Everyday Performance
General Feature
APPLICATION
Client PCs
FORM FACTOR
M.2 (2280)
INTERFACE
PCIe Gen 4.0 x4 / 5.0 x2 NVMe 2.0
DIMENSION (WxHxD)
80.15 x 22.15 x 2.38mm
WEIGHT
Max 9.0g Weight
STORAGE MEMORY
Samsung V-NAND TLC
CONTROLLER
Samsung in-house Controller
CACHE MEMORY
HMB(Host Memory Buffer)
Special Feature
TRIM SUPPORT
Supported
S.M.A.R.T SUPPORT
Supported
GC (GARBAGE COLLECTION)
Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT
AES 256-bit Encryption (Class 0) TCG/Opal
IEEE1667 (Encrypted drive)
WWN SUPPORT
Not supported
DEVICE SLEEP MODE SUPPORT
Yes
Performance
SEQUENTIAL READ
1TB: Up to 7,150 MB/s
SEQUENTIAL WRITE
1TB: Up to 6,300 MB/s
RANDOM READ (4KB, QD32)
1TB: Up to 850,000 IOPS
RANDOM WRITE (4KB, QD32)
1TB: Up to 1,350,000 IOPS
Environment
AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)
1TB: Average: Read 4.3 W / Write 4.2 W
POWER CONSUMPTION (IDLE)
1TB: Typical 60 mW
POWER CONSUMPTION (DEVICE SLEEP)
1TB: Typical 5mW
ALLOWABLE VOLTAGE
3.3 V 5 % Allowable voltage
RELIABILITY (MTBF)
1.5 Million Hours Reliability (MTBF)
OPERATING TEMPERATURE
0 - 70 Operating Temperature
SHOCK
1,500 G & 0.5 ms (Half sine)
What's in the box

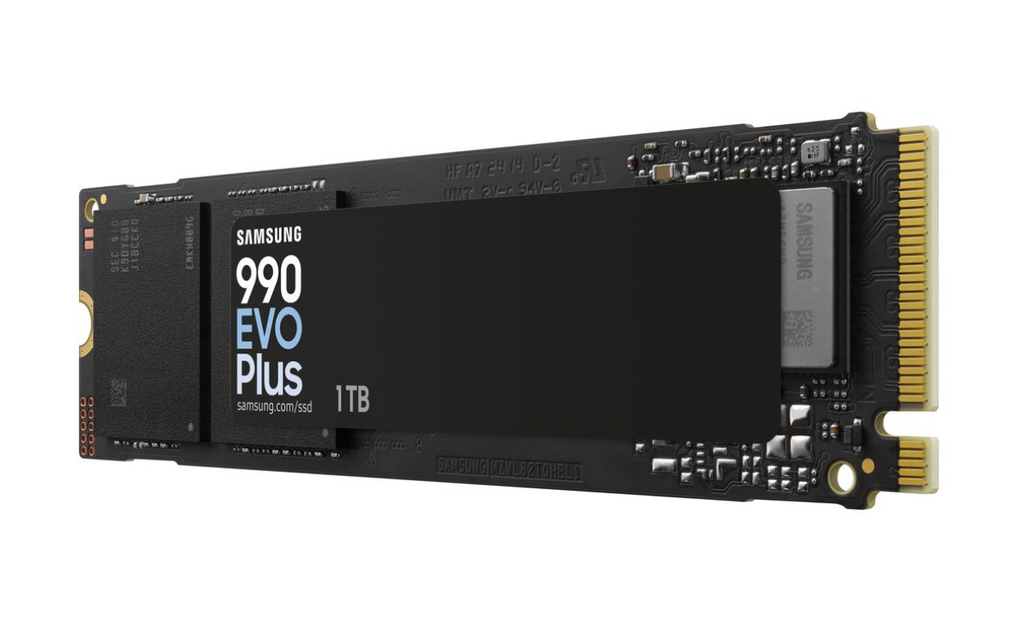

1 x Samsung 990 EVO Plus 1TB NVMe SSD
*PLEASE NOTE - THIS IS AN UNBOXED DEAL. THE UNIT IS STILL NEW AND FULLY COVERED BY OUR 3 MONTH MANUFACTURER WARRANTY. THE BOXES HAVE BEEN OPENED TO DISPLAY THE UNIT IN OUR SHOWROOM*
