Description
RCT-AXVM2-PREM 1.2K-12V

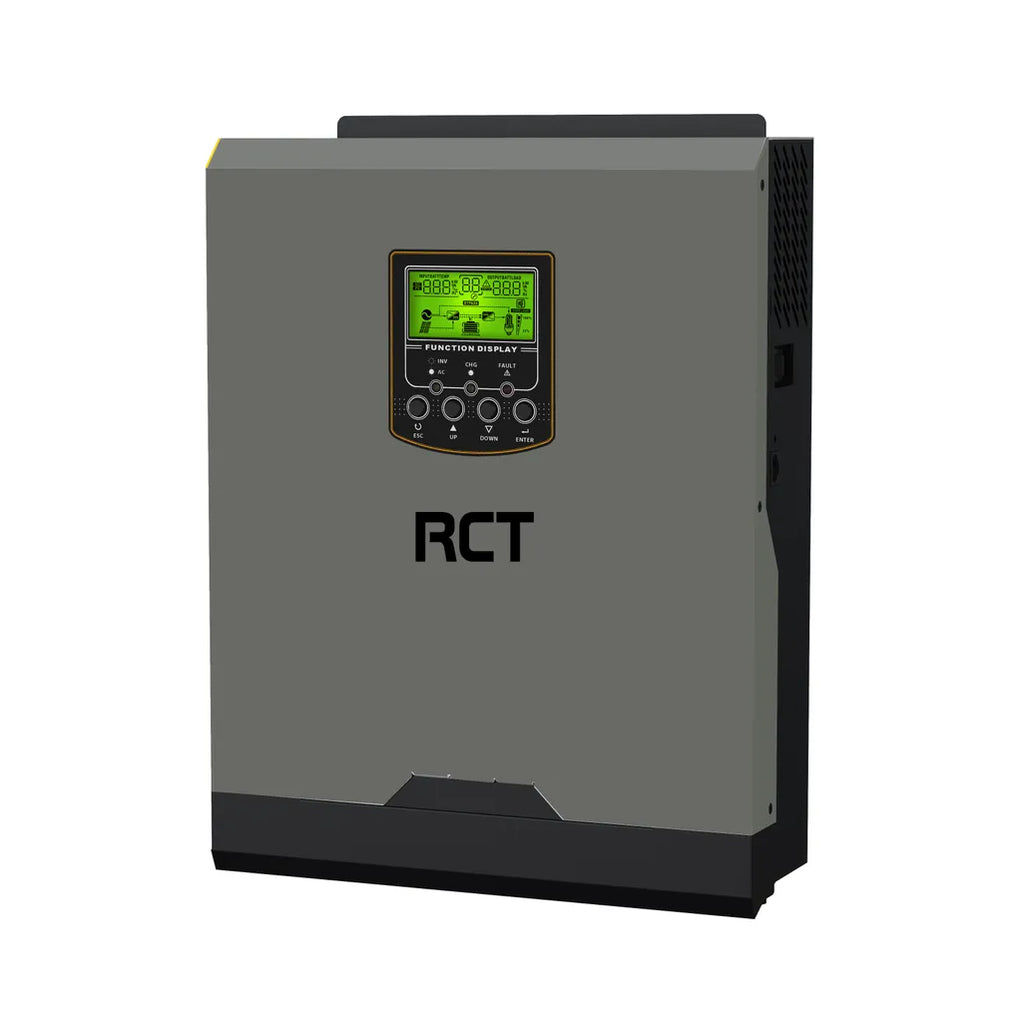

RCT-AXPERT VM2 Premium 1200W 12V 2000W MPPT - RCT-AXVM2-PREM 1.2K-12V
Main Features
- Pure sine wave solar inverter
- Reserved communication port for BMS
- Wide PV input range
- Battery independent design
- Maximum charging current 100A
- Battery equalization function to optimize battery performance and extend lifecycle
- Built-in anti-dust kit
Specifications
| Model | Axpert VM II Premium 1200-12 |
| RATED POWER | 1200VA/ 1200W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 2400VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.5 VDC |
| Overcharge Protection | 16 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 2000 W |
| MPPT Range @ Operating Voltage6 | 60VDC ~ 300VDC |
| Maximum PV Array Open Circuit Voltage | 350VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| COMMUNICATION INTERFACE | |
| RS232 / RS485 / Optional Wi-Fi | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 90 x 288 x 357 |
| Net Weight (kgs) | 6.5 |
| Communication Interface | RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Product specifications are subject to change without further notice. |
