Description

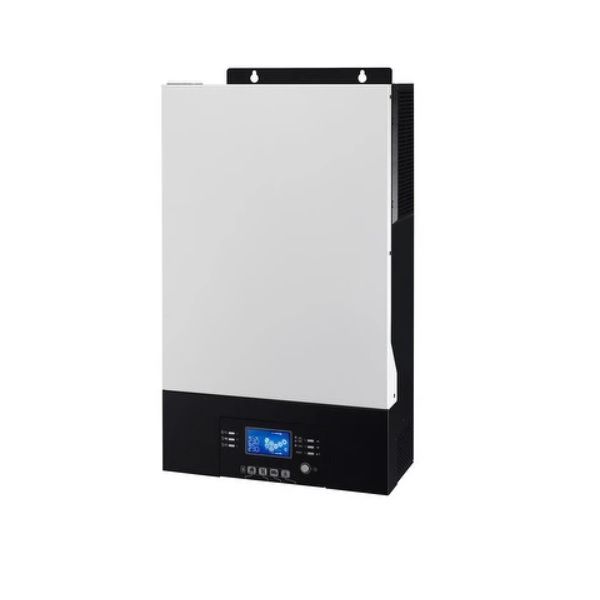

The RCT-Axpert King 5KVA Inverter is a Pure Sine Wave Inverter with a built-in 4000W MPPT solar charger with 145V DC max open PV voltage.
Equipped with a LCD control module with multiple communications
Mobile monitoring enabled via built-in Bluetooth
Configurable AC/PV output usage timer & prioritisation
Compatible with utility mains or generator input
Selectable input voltage range to suit electrical appliances
RCT Power designs flexible and reliable battery storage systems that are easy to install and operate. They specialise in back-up power supply and solar energy solutions
Rated power: 5000VA/5000W
Parallel capability: Up to 9 units
AC adapter output voltage: 230V
Voltage range: 110 - 280VAC
Frequency range: 50/60Hz (auto sensing)
AC voltage regulation: 230 AC ±5%
Output THDv: Surge power: 10000VA for 5 sec
Efficiency: 93% at line mode, 90% at battery mode
Transfer time: 0ms
Battery voltage: 48VDC
Floating charge voltage: 54VDC
Overcharge protection: 66VDC
Waveform: Pure sine
Operating temperature: 0 to 55°C
Storage temperature: -15 to 60°C
Relative humidity: 5 - 95%
Supports USB On-the-Go function
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Auto restart while AC is recovering
Cold start function
Solar charger type: MPPT
Maximum PV array open-circuit voltage: 145VDC
Maximum PV array power: 4000W
MPP range @ operating voltage: 60~115VDC
Maximum solar charge current: 80A
Maximum AC charge current: 60A
Maximum charge current: 140A
The box excludes any electrical power cables. An electrician is required to install this unit.
Note:
All inverters must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (Coc) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid Coc and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
What's in the box
1 x RCT Axpert King 5000VA/5000W Inverter Charger
1 x user Manual
