Description

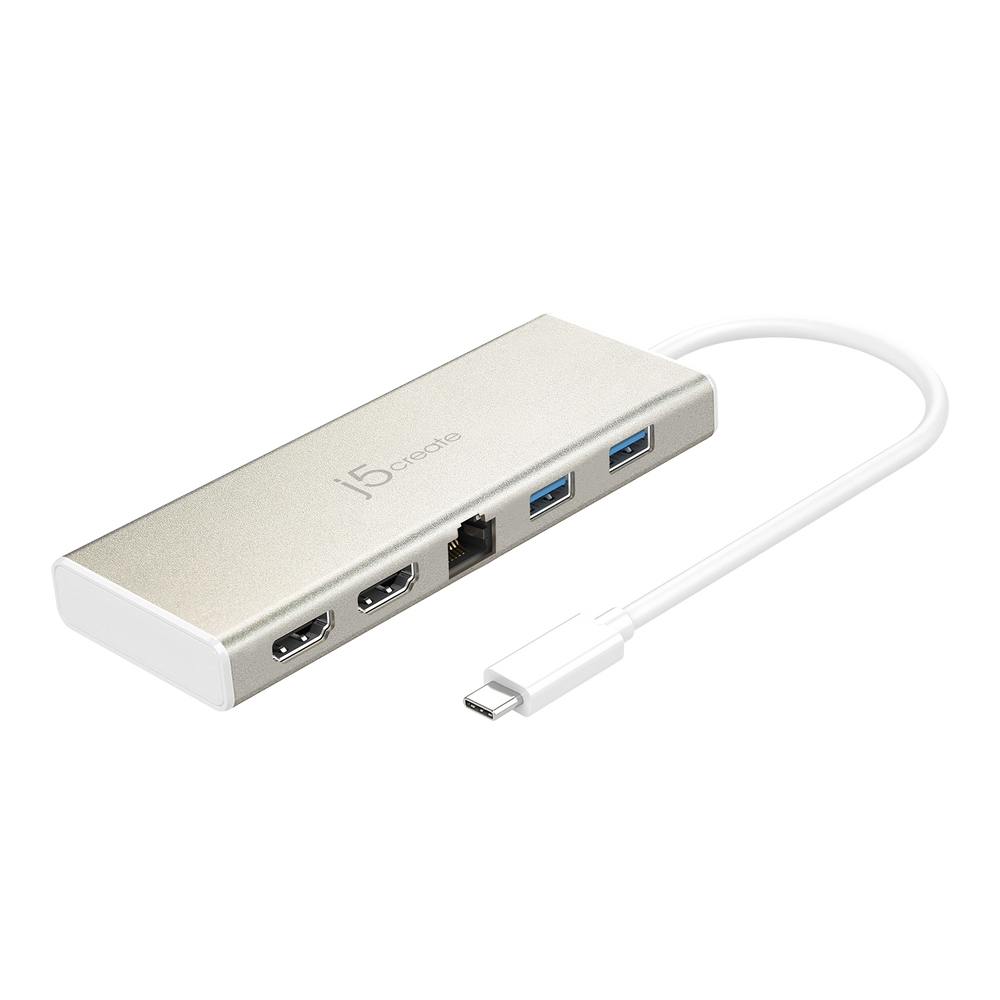

J5 JCD381 U3.1 type-C minidock
ABOUT THIS PRODUCT:
The USB-C® Dual HDMI™ Mini Dock provides extra connectivity for your USB-C® computer, featuring data transfer, power delivery and video displays. Easily add two additional USB™ computer peripherals, two HDMI™ monitors, and a Gigabit Ethernet connection through your USB-C® port. When connected to a power source, the USB-C® input charging port allows you to continue charging your laptop or smartphone. Its compact and lightweight design, making it great for use on the go.
FEATURES:
• Easily add a 4K or two 2K displays via HDMI™
• USB-C® power delivery 2.0 provides charging power to the connected devices
• Connect or charge your USB™ devices with 2 x USB™ ports
• SuperSpeed USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
• Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
• Reliable network connectivity via the Gigabit Ethernet port
N.B. SYSTEM REQUIREMENTS:
• Windows® 10, macOS® X 10.8 or later
• Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0. (USB™ 3.0 is recommended)
Please refer to the manufacturer of your hardware for more information on your device.
• For office applications / Web:
• CPU: Intel® Core™ i3 Dual Core 2.8 GHz
• RAM: 2 GB memory or higher
• For one 2K (2048 x 1152 @ 60 Hz) full-screen video playback:
• CPU: Intel® Core™ i5 Quad Core
• RAM: 4 GB memory or higher
• For two 2K or one 4K (3840 x 2160 @ 30 Hz) full-screen video playback:
• CPU: Intel® Core™ i7 Quad Core
• RAM: 8 GB memory or higher
N.B. SPECIAL NOTES:
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
SPECIFICATIONS:
Hardware:
- Warranty: 2-Year Limited
- Host Connector: 1 - USB-C™ Male
- Video Output: 2 - HDMI™ Female
- Power Source: Bus-powered or self-powered
- Network Interface Yes
- Audio Supported Yes
- Ports:
1 - USB-C® Power Delivery 2.0
2 - USB™ Type-A 3.0
1 - RJ45 Gigabit Ethernet
1 - 4K HDMI™
1 - HDMI™
Performance:
- Maximum Display Resolution
Dual Displays: 3840 x 2160 and 2048 x 1152 / 1920 x 1080
Single Display: 3840 x 2160
- Maximum Display Refresh Rate:
4K @ 30 Hz
2K / 1080p @ 60 Hz
- Maximum Data Transfer Rate: 5 Gbps
- Displays Supported: 2
- Compatible Networks: 10/100/1000 Mbps
- Audio Channel: HDMI™ 2.1
Power:
- Power Delivery: Up to 60W via USB-C®
- Power Consumption: ? 450mA
- Input Current: Up to 3A
- Input Voltage: Up to 20V
- Output Current: Up to 3A
- Output Voltage: Up to 20V
Physical Specifications:
- Color: Champagne Metallic
- Enclosure Type: Aluminum
- Cable Length: 7.8 in. (198.12mm)
- Product Height: 2.1 In. (54 mm)
- Product Width; 5.1 In. (130 mm)
- Product Depth: 0.6 In. (15 mm)
- Product Weight: 4.00 oz (113.5 g)
- Storage Temperature: 14 to 140°F (-10 to 65°C)
- Storage Humidity: < 85% non-condensing
- Operating Temperature: 32 to 98°F (0 to 37°C)
- Operating Humidity: < 85% non-condensing
What's in the box
Package Contents:
• 1 - JCD381 USB-C® Dual HDMI™ Mini Dock
• 1 - Quick Installation Guide
