Description

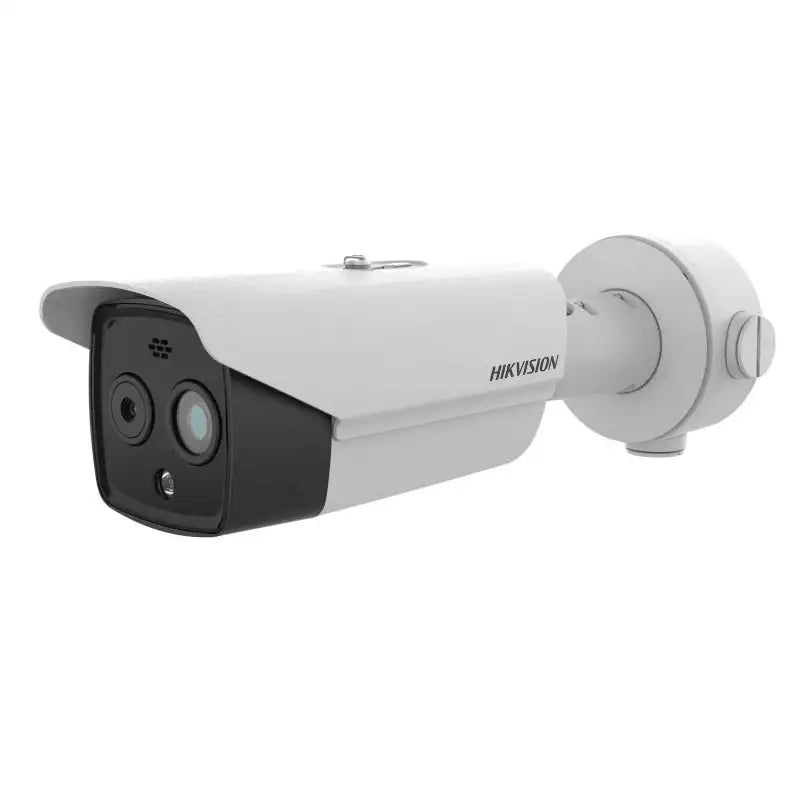

HIKVISION HEATPRO BI-SPECTRUM THERMAL
The HIKVISION HEATPRO BI-SPECTRUM THERMAL camera, specifically the DS-2TD2628-10/QA model, utilizes video analysis for perimeter protection and temperature exception alarm, making it ideal for early fire prevention.
Its advanced deep learning algorithm allows for accurate VCA detection and real-time alarms. These cameras are suitable for various settings such as villas, communities, parking lots, warehouses, construction sites, waste incineration plants, and manufacturing workshops.
FEATURES:
- 256 × 192 resolution, 12 m, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Support smoking detection algorithm
- Support sun-reflection filter algorithm
SPECS:
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 × 192
- Pixel Pitch12 m
- Spectral Range8 m to 14 m
- NETD< 40 mK (25°C, F1.0)
- Focal Length9.7 mm
- IFOV1.24 mrad
- Field Of View18.0° × 13.5° (H × V)
- Min. Focusing Distance1.5 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length8.0 mm
- Field Of View39.4° × 22.1° (H × V)
- Aperture (Range)F1.6
- WDR120 dB
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity And AngleAutomatically adjusted
- Audible And Visual Alarm
- White Light RangeUp to 30 m
