Description

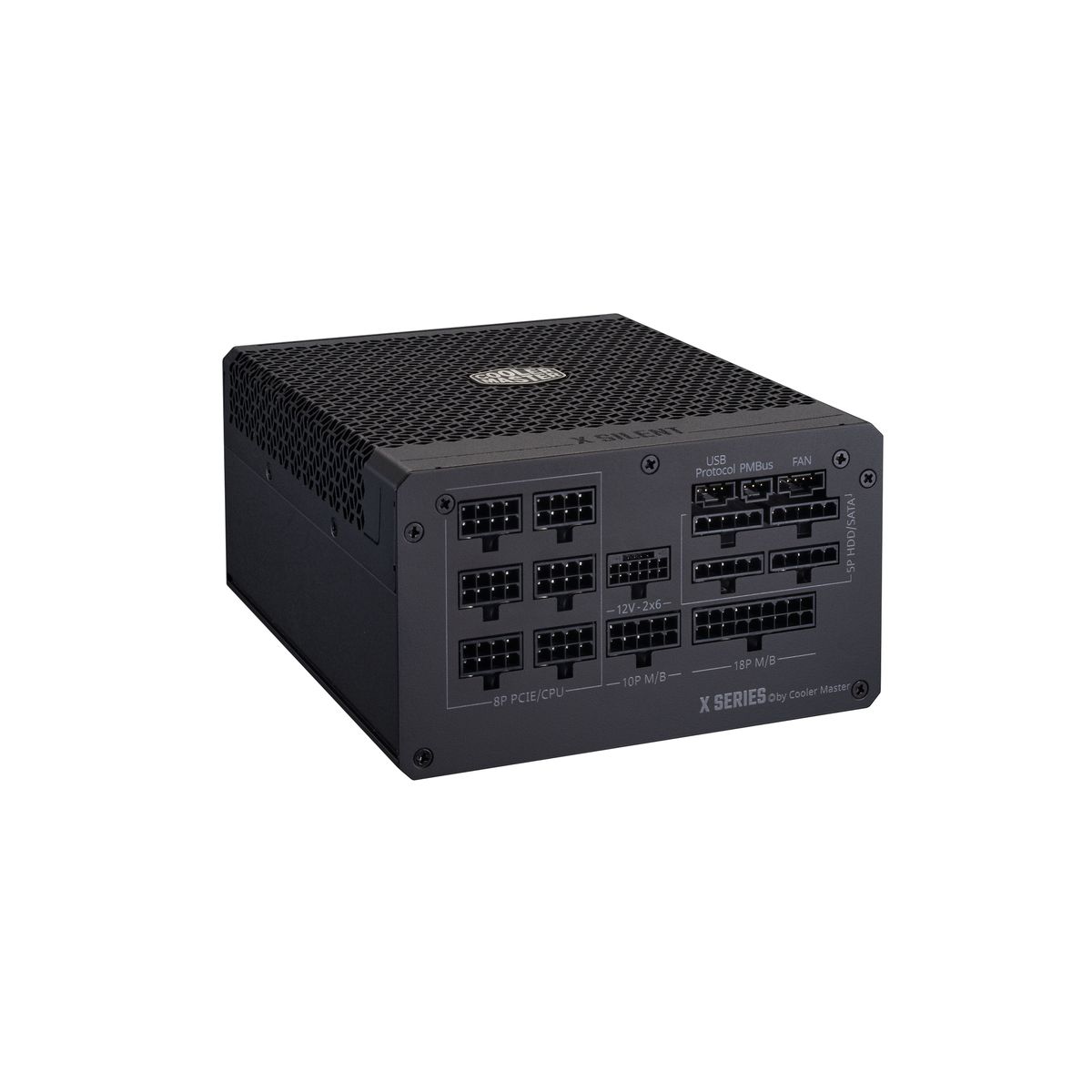

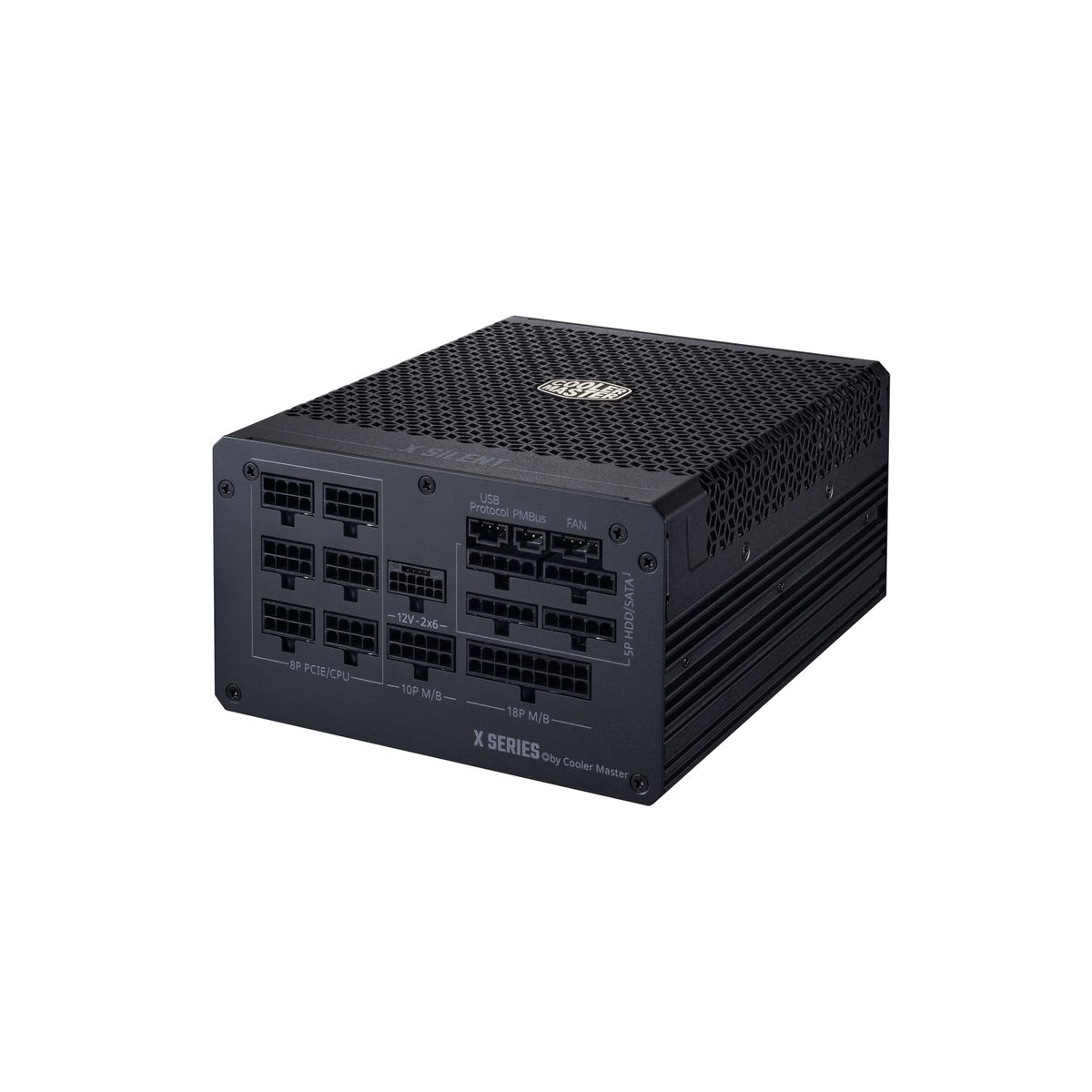

X SILENT EDGE PLATINUM
1100 230V
PRECISE SILENT POWER
Introducing the X Silent Edge Platinum 230V, the industry's first fanless PSU to achieve 1100W. The Edge features totally silent and dustless performance, innovative heat pipe technology, advanced heat dissipation, 80 Plus Platinum efficiency, an active bridge rectifier, and a digital monitor powered by Cooler Master's MasterCTRL software. With these features, the Edge provides precise and silent power.
The X Silent Edge Platinum 230V also includes ATX 3.1 support, a durable 12V-2x6 cable with Dual Color Connectors, reliable industrial-grade Infineon IC chips, fully modular cabling and high- quality Japanese capacitors. The X Silent Edge Platinum is the next frontier of silent, reliable, powerful performance.
FEATURES
Silent Operation
Fanless design enables 0dBA operation while keeping the system dust-free.

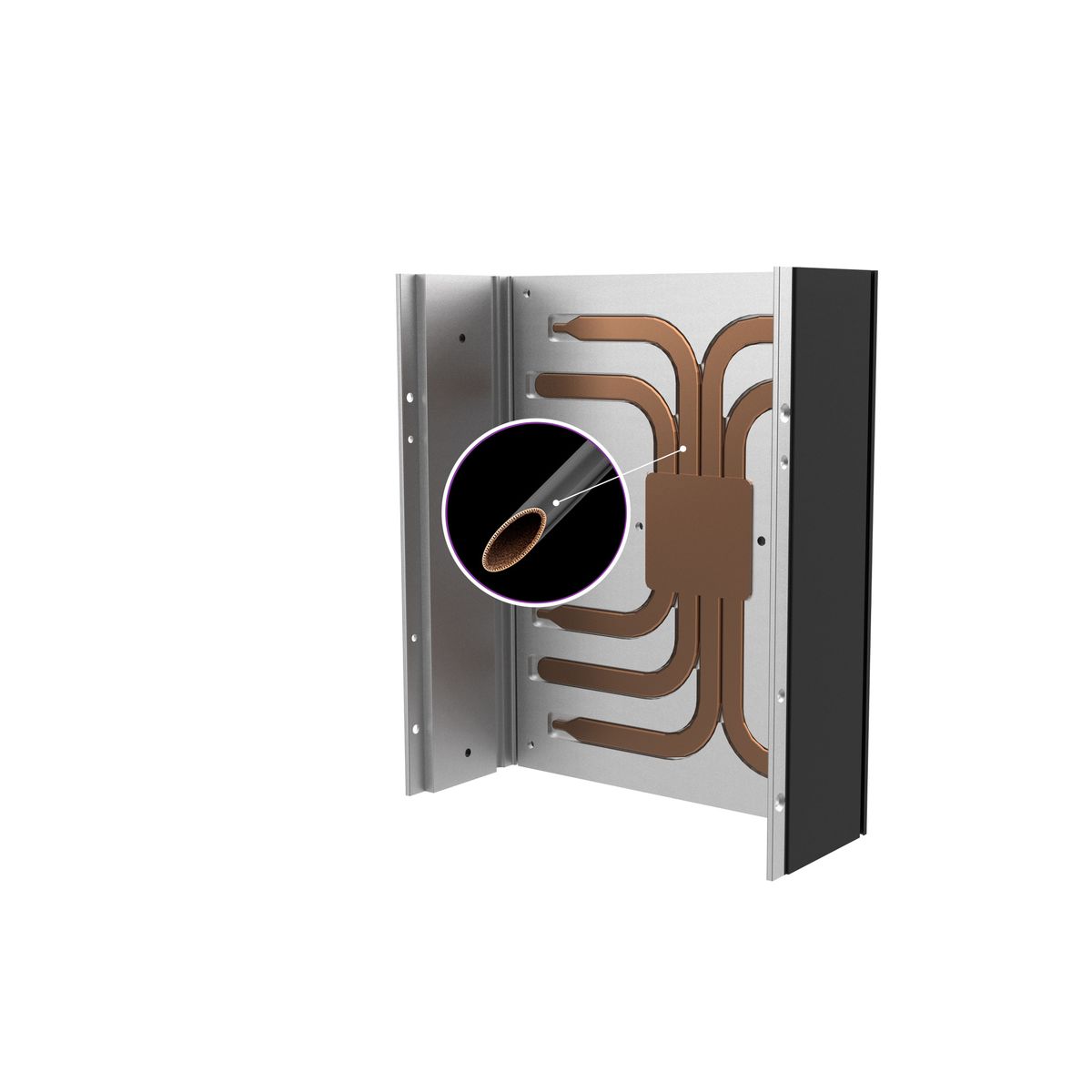

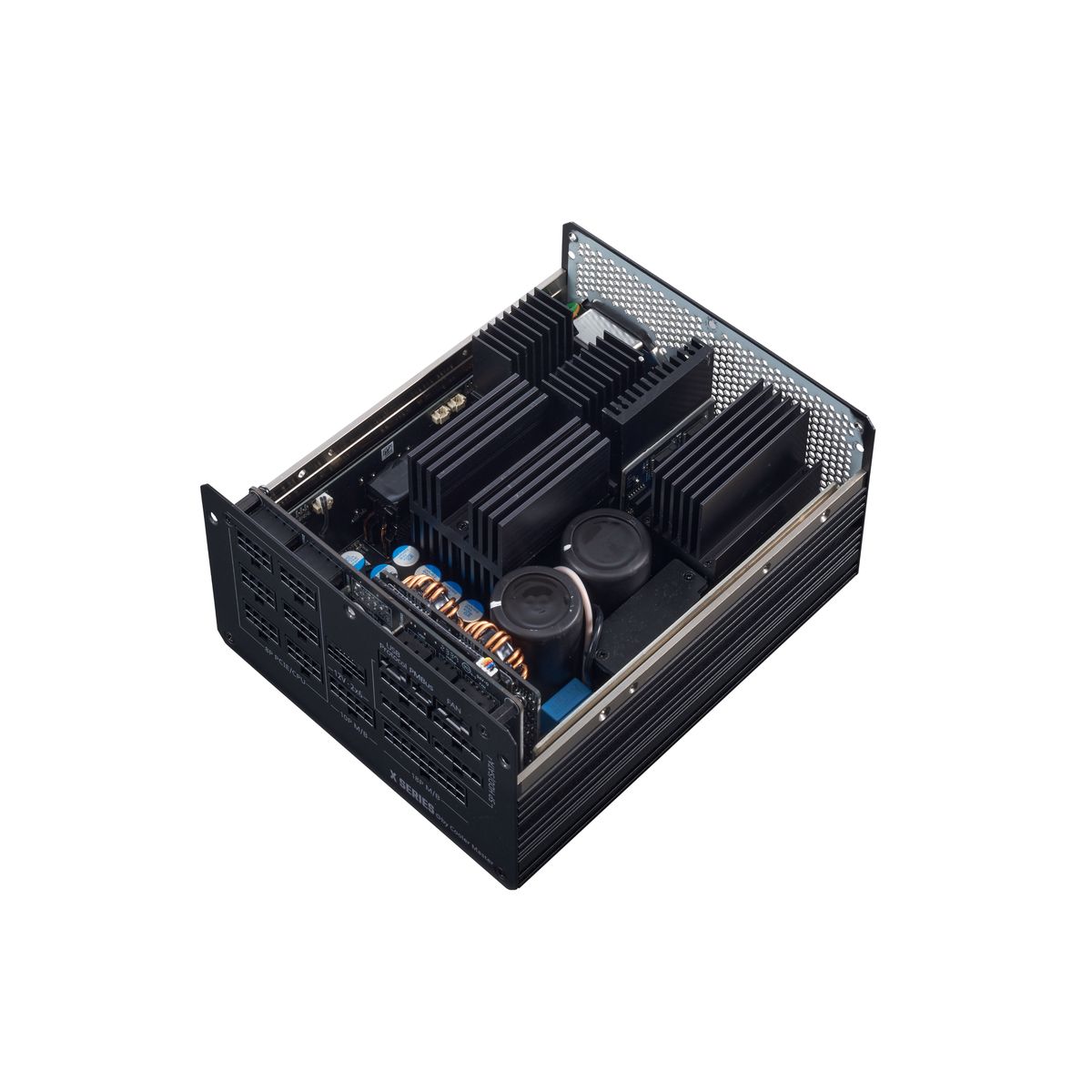

Innovative composite heat pipe technology enhances passive thermal transfer.

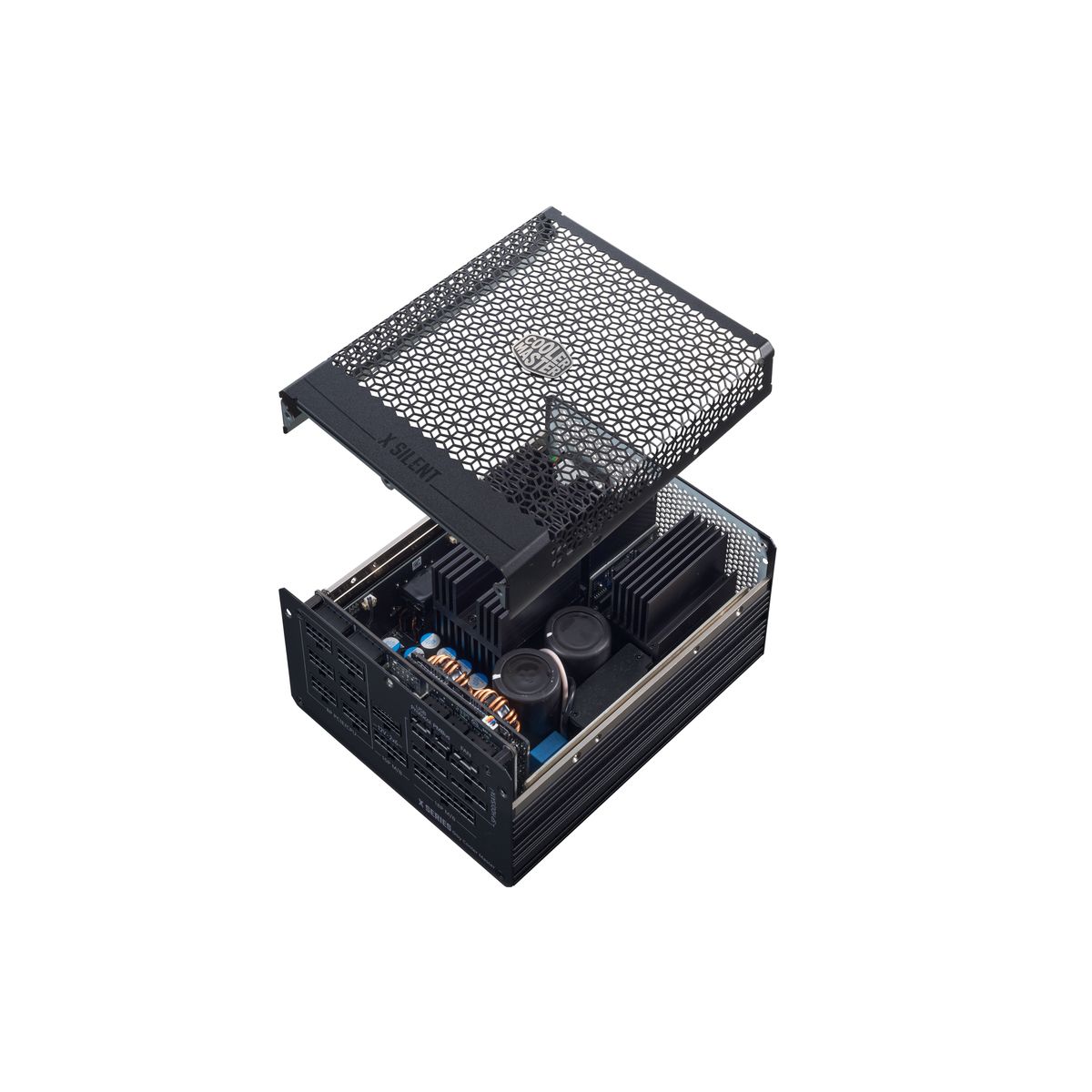

A patented aluminum thermal mold delivers efficient heat dissipation without active cooling.
Fully modular cabling improves airflow and helps maintain passive cooling efficiency.
Optional external fan port allows thermal flexibility for custom system integration.
AI Ready Designed for High-Performance AI Workloads
ATX 3.1 and PCIe 5.1 support ensure stable power delivery for next-gen GPUs.
Built for AI workloads with 12V-2x6 connector and dual-color safety indicators.
Server-grade PMBus v1.2 monitors efficiency, thermals, and load in real time.
Real-time power monitoring with MasterCTRL provides visibility into system performance.
Premium Components
80 Plus Platinum certification delivers over 94% efficiency at typical loads.
Active bridge rectifier improves power conversion efficiency and overall stability.
Infineon industrial-grade ICs ensure reliable and long-lasting performance.
High-quality Japanese capacitors reduce ripple noise and extend lifespan.
15-year warranty reflects the quality and long-term reliability

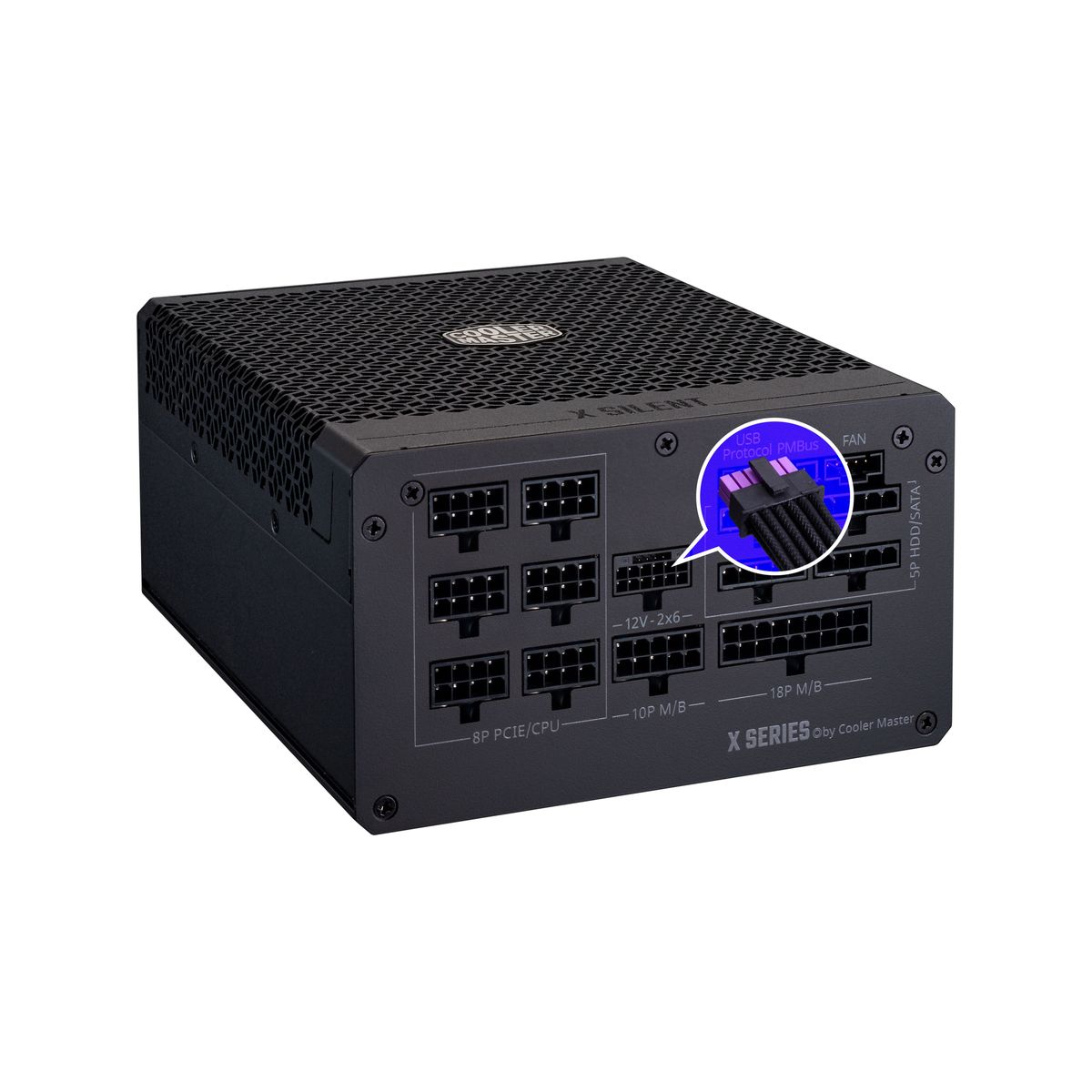

Dual-color connectors (with clear purple markings) help users confirm correct installation, preventing poor
contact and power issues for enhanced safety.
Feature Highlights
- A fanless design provides total silence and a dust-free environment.

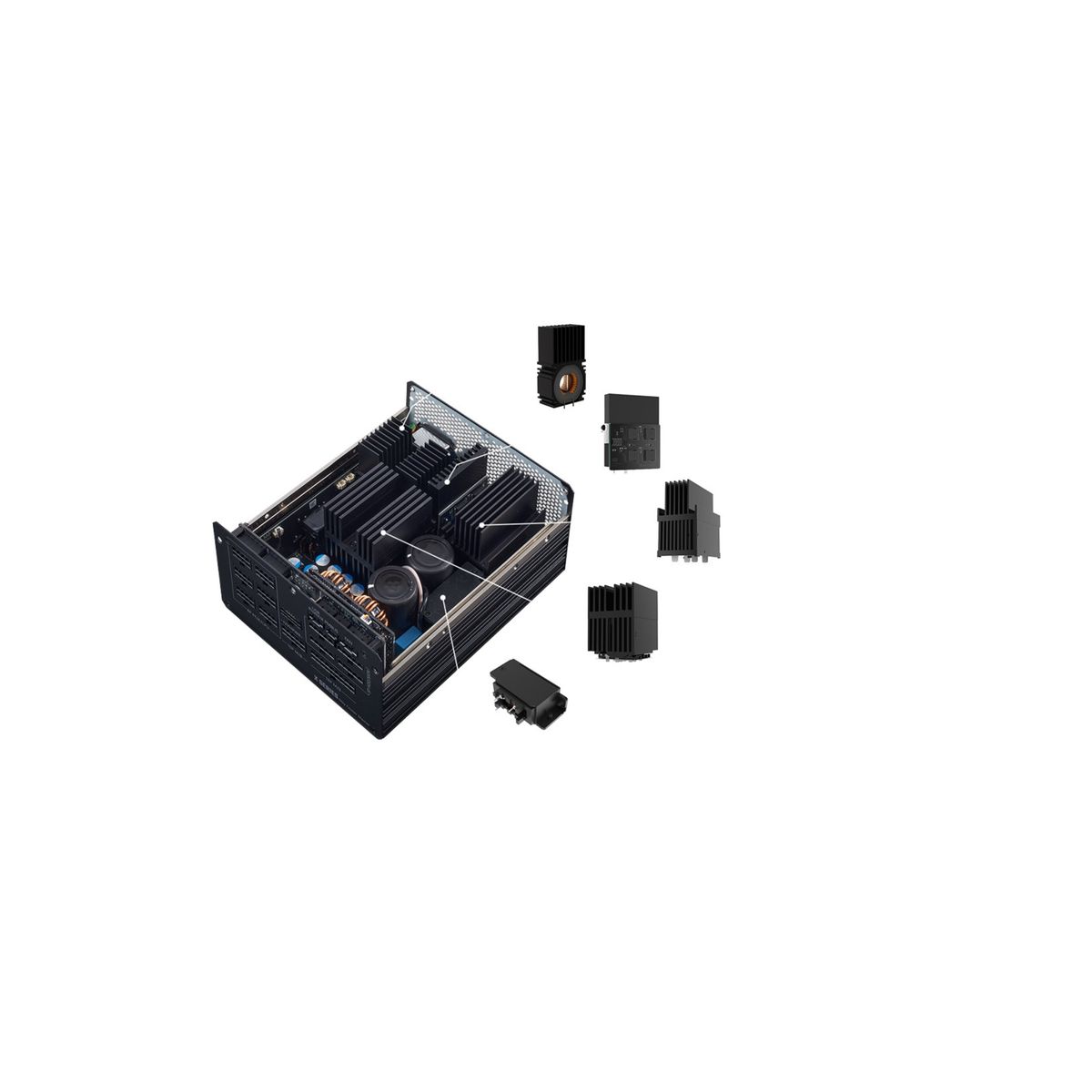

- Patented decentralized design improves thermal performance by targeting key components.

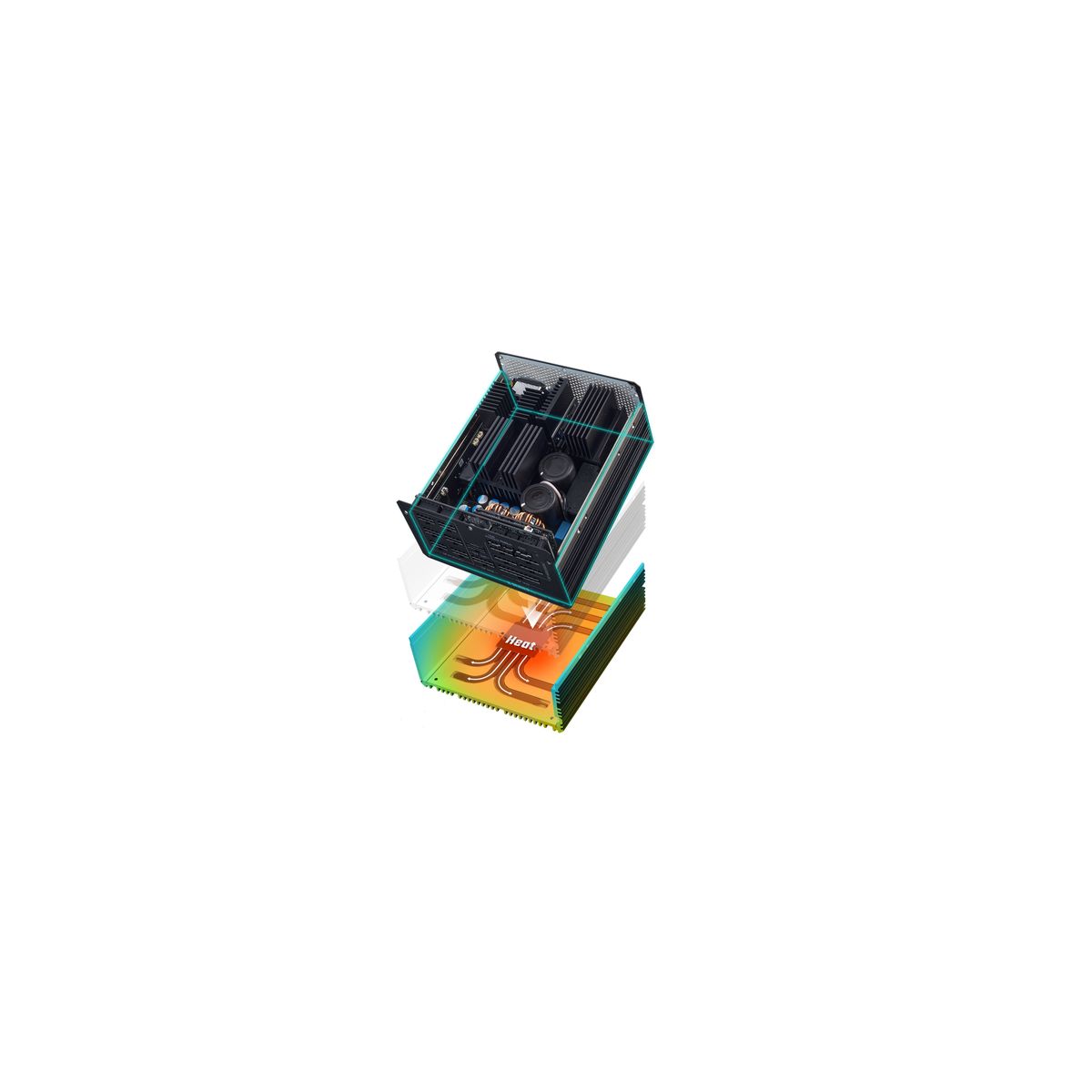

- In-house designed composite heat pipe technology enables effective passive thermal management.
- Enterprise-grade PMBus support and external fan port provide monitoring and thermal adaptability for advanced system integration.
- An active bridge rectifier built with Infineon industrial-grade chipset delivers enhanced power efficiency and long-term stability.
- Supports a single 12V-2x6 connector for high-performance GPUs, with a dual-colour design (black and purple) for correct installation.
PRODUCT SPECIFICATIONS
Product Name - X SILENT EDGE PLATINUM 1100 230V
Item Code - MPS-B001-AZBP
ATX Version - ATX 12V Ver. 3.1
PFC - Active PFC
Input Voltage - 200-240V
Input Current - 6.1 A (max)
Input Frequency - 50-60Hz
Dimensions (L x W x H) - 180 x 150 x 86 mm
Fan Size - N/A
Fan Bearing - N/A
Fan Speed - N/A
Efficiency - 94% @ Typical Load
80 PLUS Rating - 80 PLUS Platinum
ErP 2014 Lot 3 - Yes
Operating Temperature - 0 ~ 40 / 45 at 80% Load
Power Good Signal - 100 - 150ms
Hold Up Time - 16ms
MTBF - >100,000 hours
Protections - OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection
Regulatory - TUV, CE, CCC, EAC, RCM, UKCA / BIS, KC (based on region's request.)

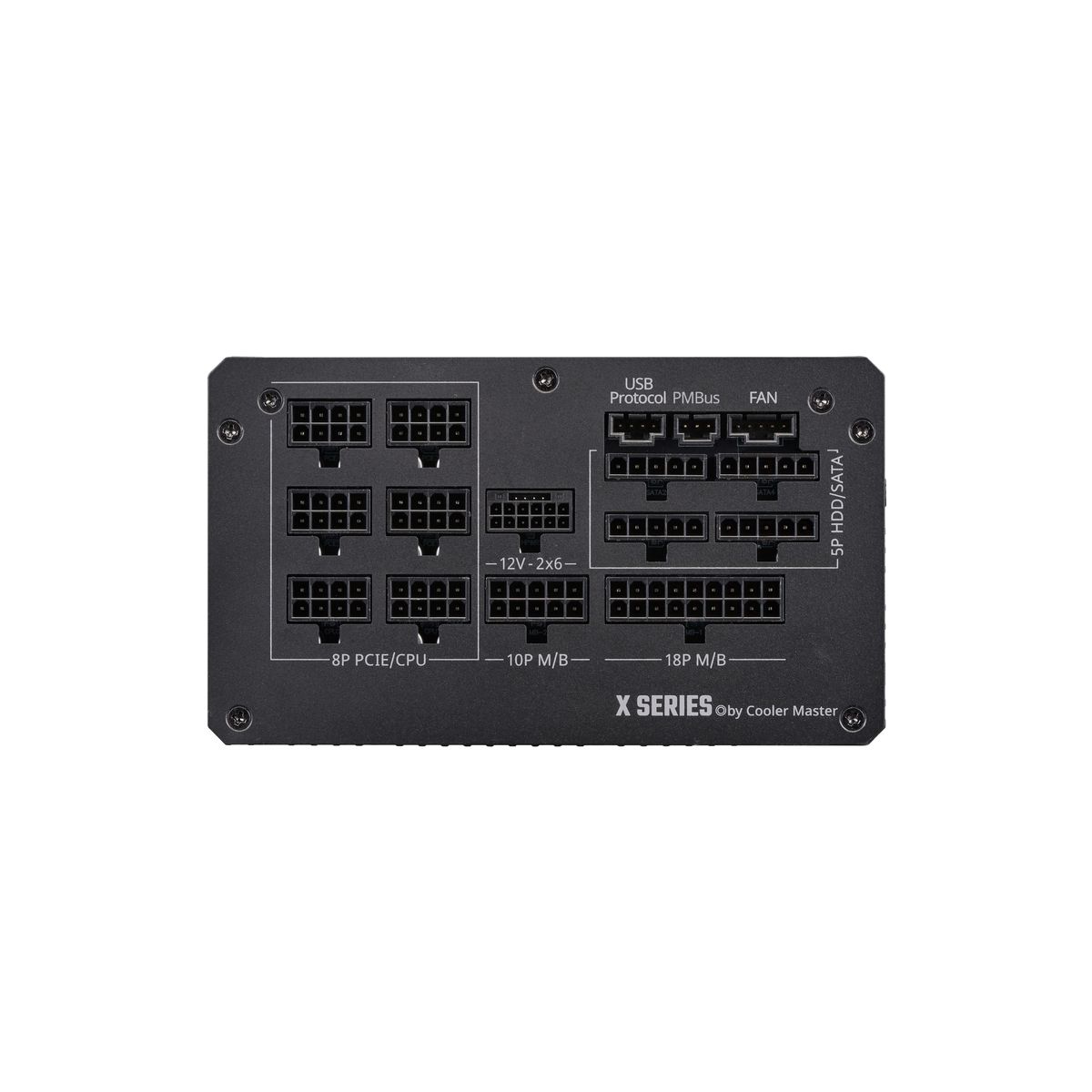

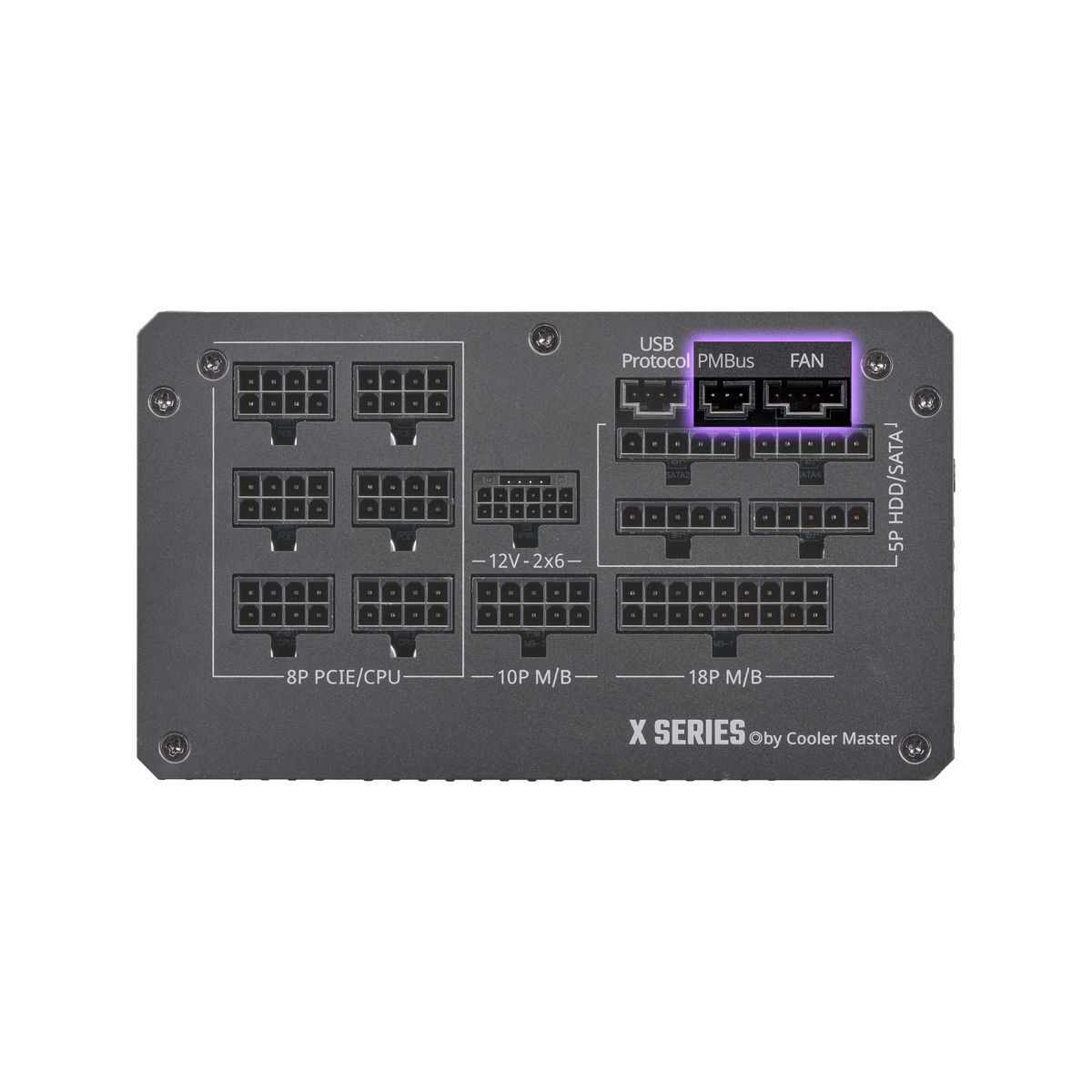

CABLE AND CONNECTOR
ATX 24 Pin - 1 Cable - 1 Connector - 650mm
EPS 4+4 Pin - 1 Cable - 1 Connector - 650mm
EPS 8 Pin - 1 Cable - 1 Connector - 650mm
SATA - 3 Cables - 12 Connectors - 500 + 150 + 150 + 150mm
Peripheral 4 Pin - 1 Cable - 4 Connectors - 500 + 120 + 120 + 120mm
PCI-e 6+2 Pin - 4 Cables - 4 Connectors - 550mm
12V-2x6 - 1 Cable - 1 Connector - 650mm
USB 10P - 1 Cable - 1 Connector - 800mm
PMBus 5 Pin - 1 Cable - 1 Connector - 650mm
External Fan 4Pin - 1 Cable - 1 Connector - 400mm
What's in the box
1 x X Silent Edge Platinum 1100 W PSU
1 x Fully modular cable set
1 x AC mains power cable
1 x Set of PSU mounting screws
1 x User manual
