Description
PLEASE NOTE - THIS IS AN UNBOXED DEAL. THE UNIT IS STILL NEW AND FULLY COVERED BY OUR 3 MONTH MANUFACTURER WARRANTY. THE BOXES HAVE BEEN OPENED TO DISPLAY THE UNIT IN OUR SHOWROOM

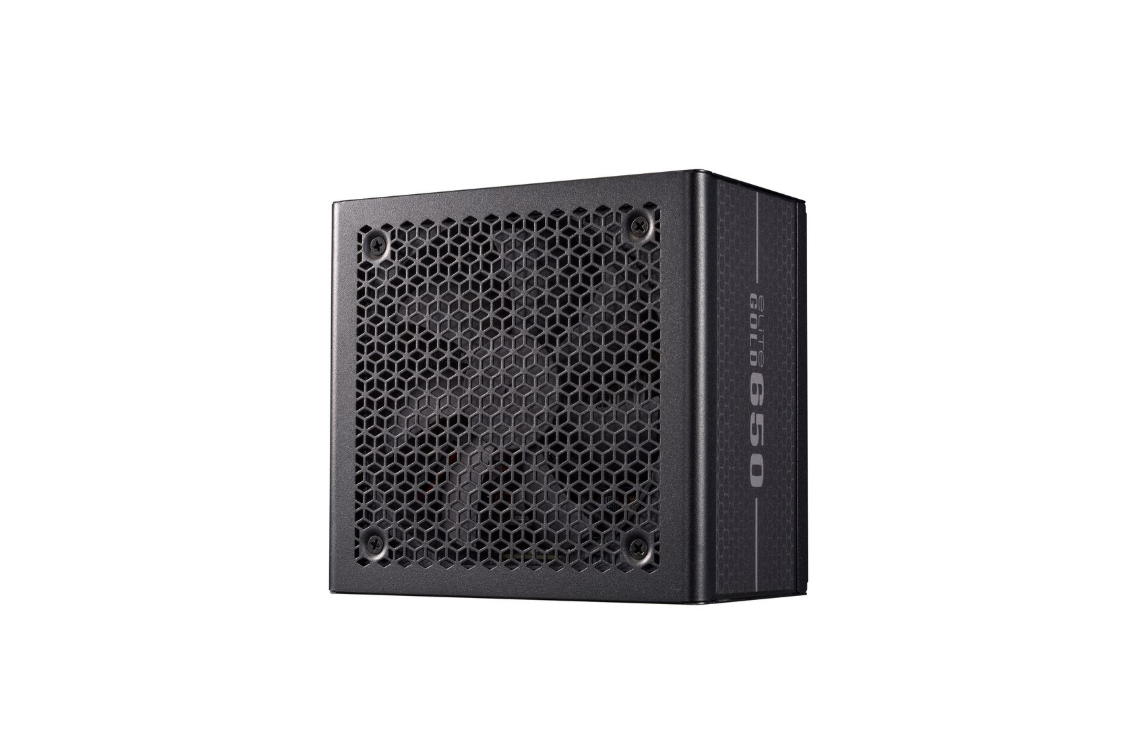

ELITE GOLD 650W
HIGH QUALITY POWER
Introducing the ELITE GOLD 650W, ATX 3.1 Gold PSU. With features such as 80 Plus Gold efficiency, a quiet refile bearing fan cooling, Elite Gold 650w provides valuable performance in multiple dimensions.Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable . With an embossed cable and exceptional temperature resilience, the Elite Gold 650w will bring you a high-quality experience.
Refile Bearing fan
Longer lifespan and better noise reduction performance.
80 Plus Gold efficiency certification
This unit is certified to achieve more than 90% efficiency at typical loads in a 115V test.
Single +12V rail
All power comes from a single +12V source, ensuring consistent output through all connected cables.
EPS 4+4 Pin/EPS 8 Pin Connectors
EPS 4+4 Pin/EPS 8 Pin connectors are included for universal compatibility with current- gen motherboards.
High temperature resilience
A 40 C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications .
Embossed cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
ATX 3.1 support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage.
PRODUCT SPECIFICATIONS
Product Name - ELITE GOLD 650W
Item Code - MPX-6505-AFAG
ATX Version - ATX 12V Ver. 3.1
PFC - Active PFC
Input Voltage - 100 - 240V
Input Current - 5~10A
Input Frequency - 50 - 60Hz
Dimensions (L x W x H) - 140 x 150 x 86mm
Fan Size - 120 mm
Fan Bearing - Refile Bearing
Efficiency - 90% @ Typical Load
80 PLUS Rating - 80 PLUS Gold
ErP 2014 Lot 3 - Yes
Operating Temperature - 0 ~ 40
Power Good Signal - 100 - 150ms
Hold Up Time - 11ms @ 100% load
MTBF - >100,000 hours @ 25 ambient
Protections - UVP / OVP / OPP / OTP / SCP
Regulatory:
cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
ATX 24 Pin - x1 = 1x (550mm)
EPS 4+4 Pin/EPS 8 Pin - x2 = 1x (600+120mm)

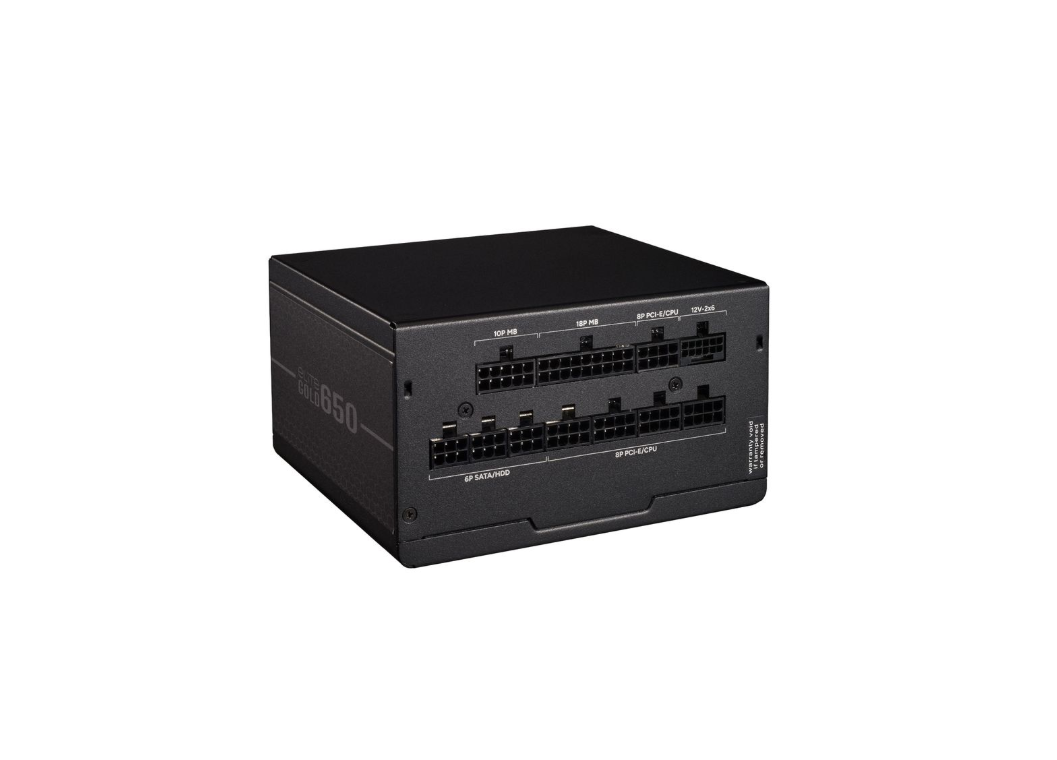

Connectors:
SATA + Peripheral 4 Pin - x4(s) + x2(p) = 2x [400(s)+120(s)+120(p)mm]
PCI-e 6+2 Pin - x2 = 1x (500+120mm)
12+4 Pin - x1 = 1x(650mm)
What's in the box
1 x Cooler Master MPX-6505-AFAG-BEU
1 x AC mains power cable

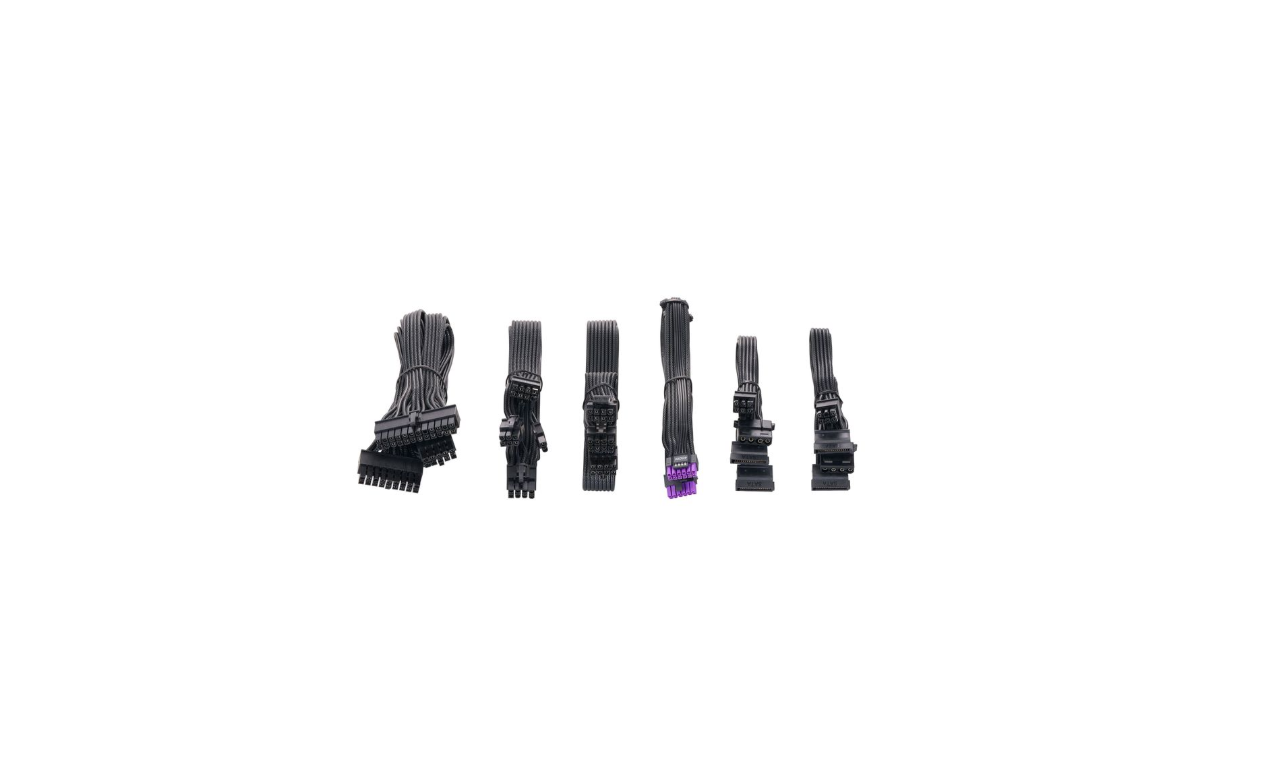

1 x Full set of modular cables
1 x Set of PSU mounting screws
1 x User manual
*PLEASE NOTE - THIS IS AN UNBOXED DEAL. THE UNIT IS STILL NEW AND FULLY COVERED BY OUR 3 MONTH MANUFACTURER WARRANTY. THE BOXES HAVE BEEN OPENED TO DISPLAY THE UNIT IN OUR SHOWROOM*
