Description

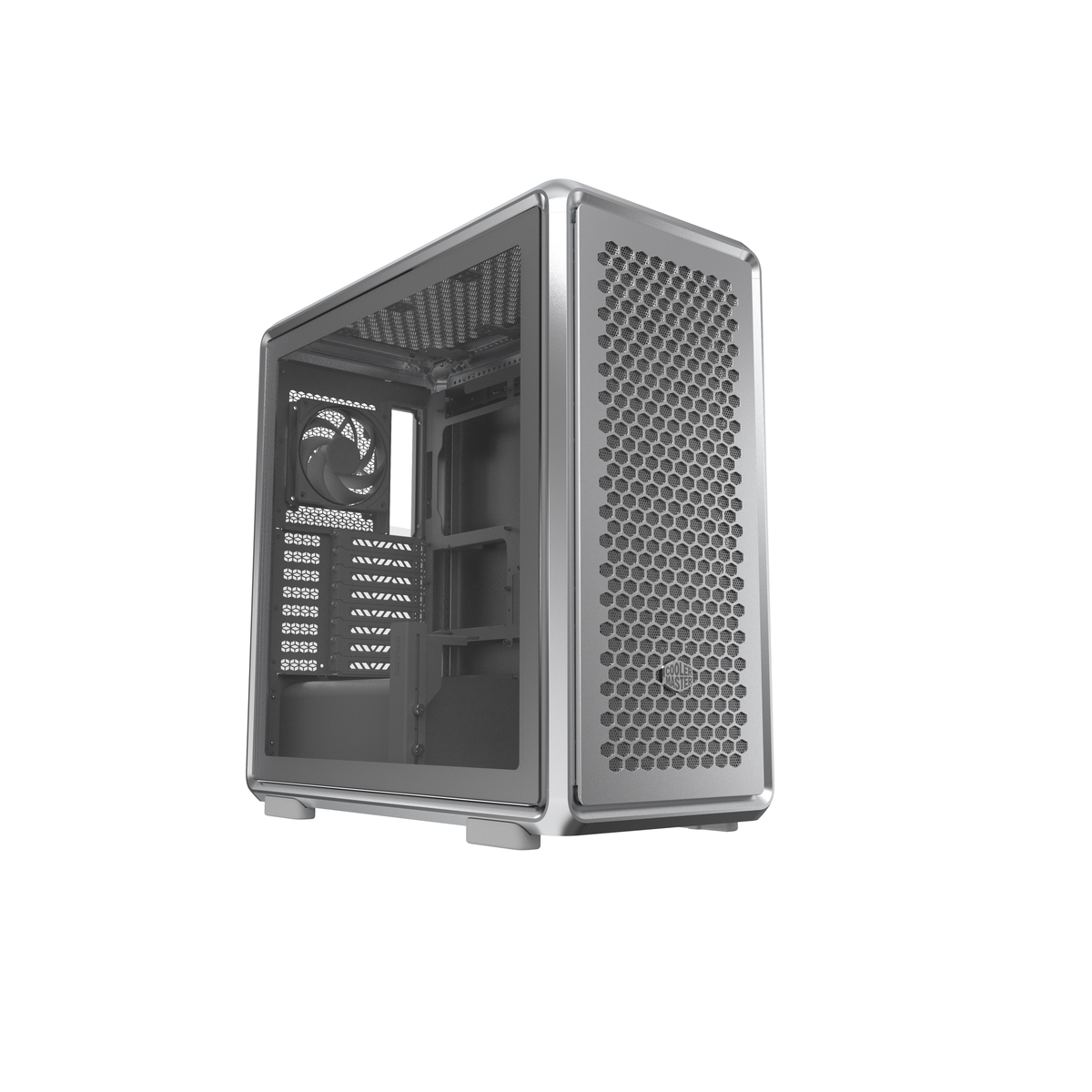

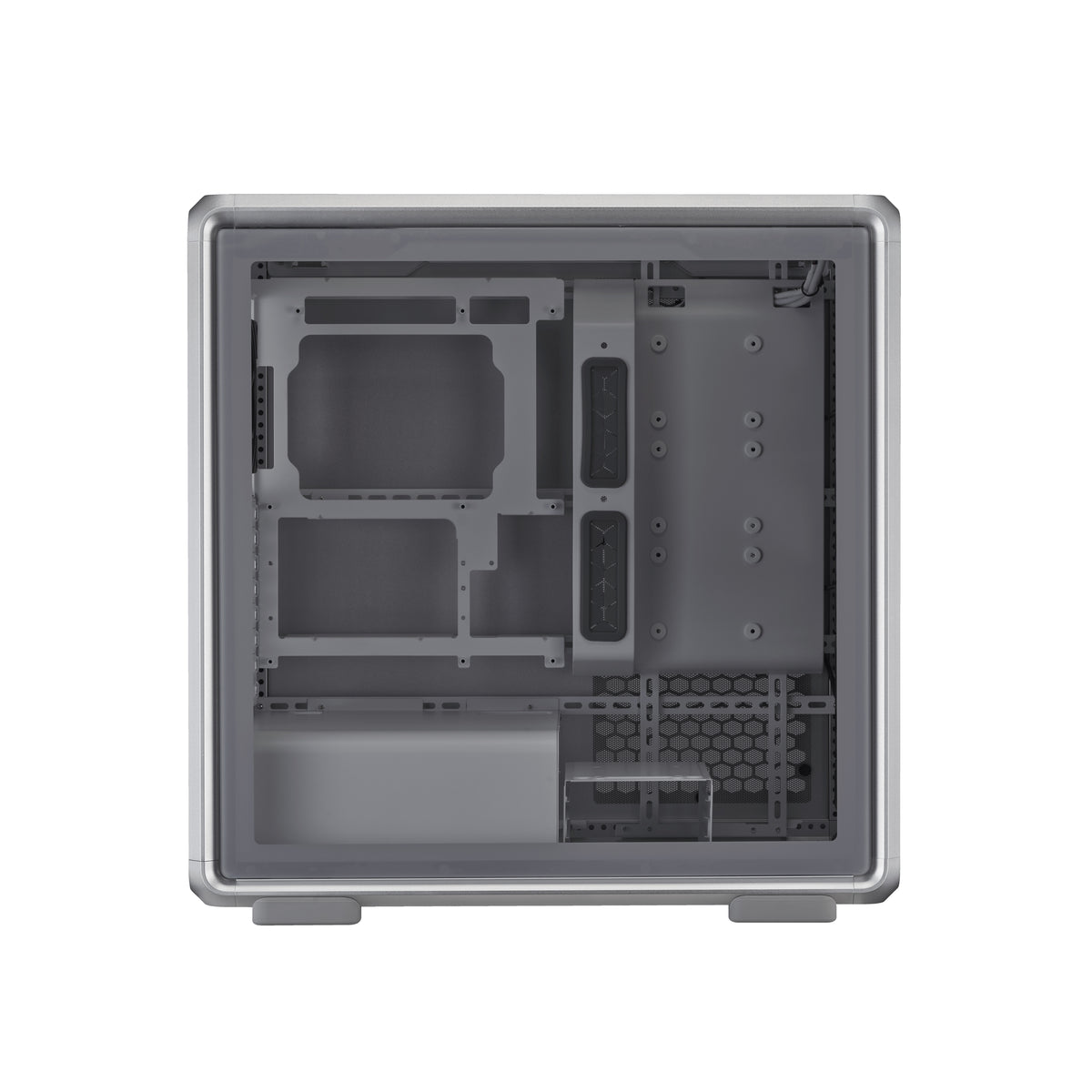

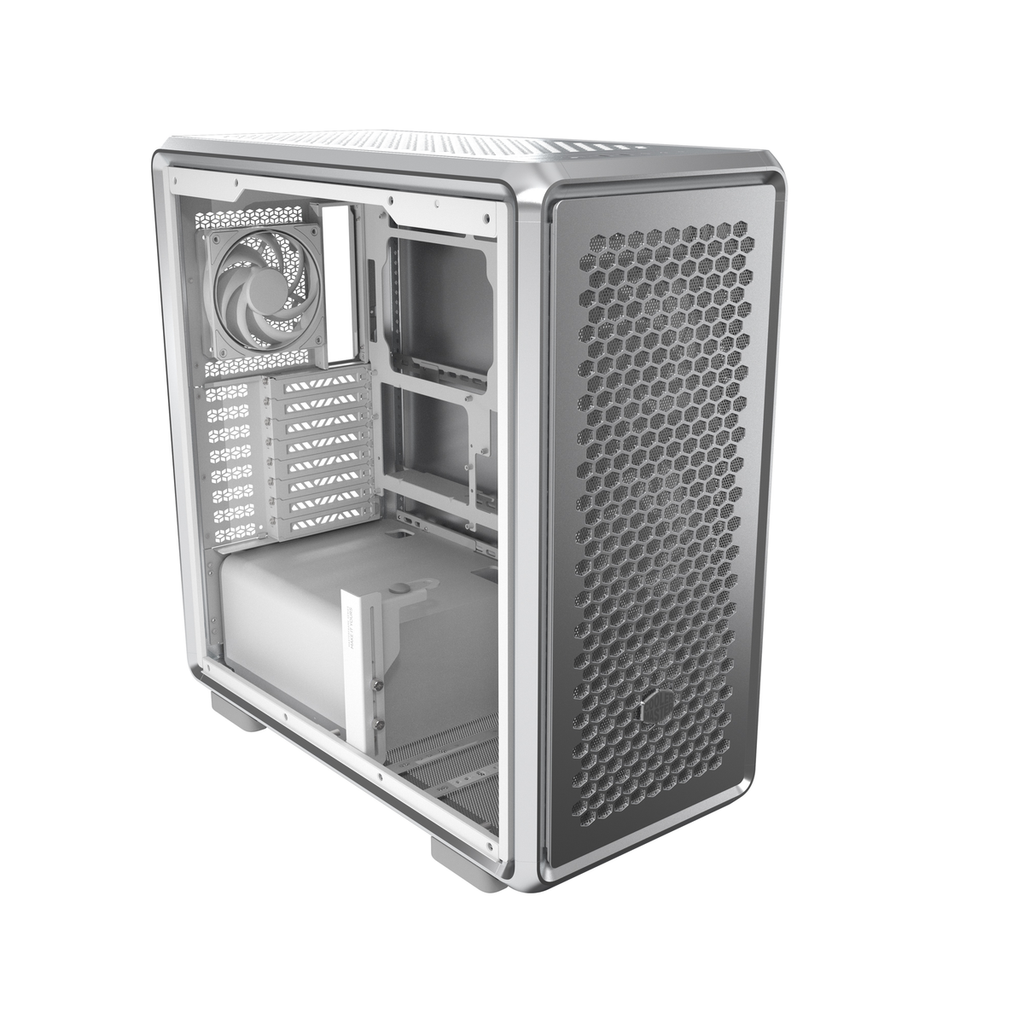

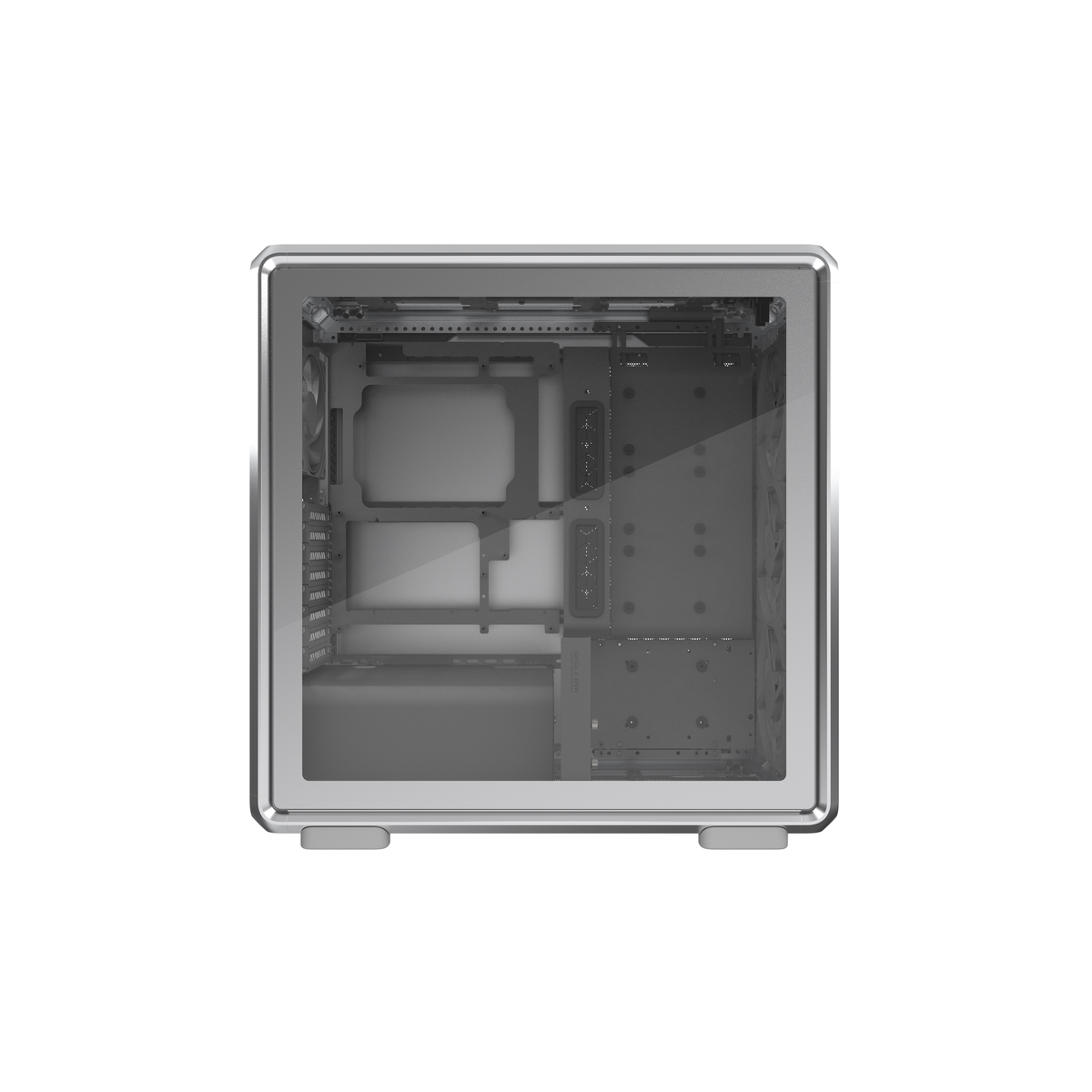

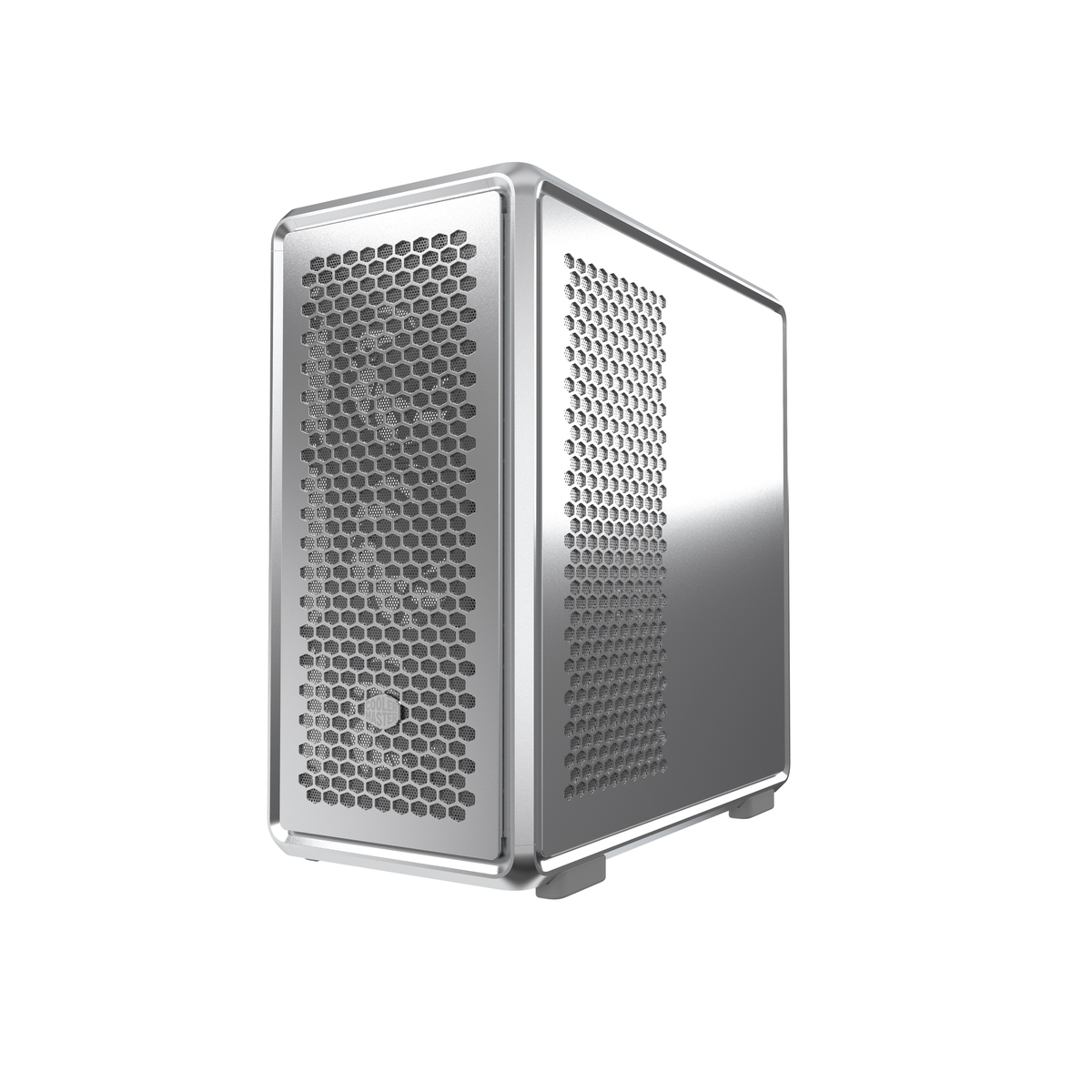

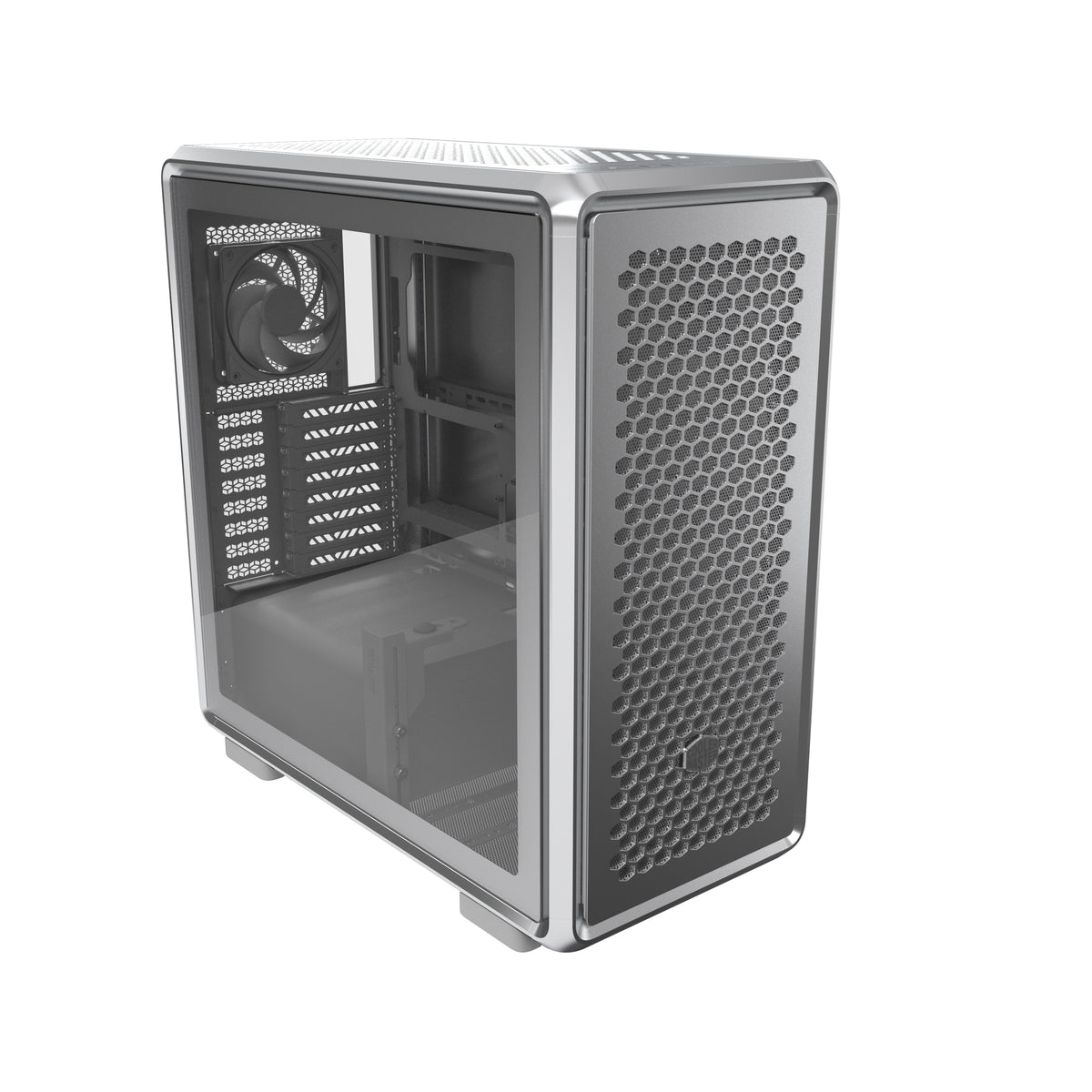

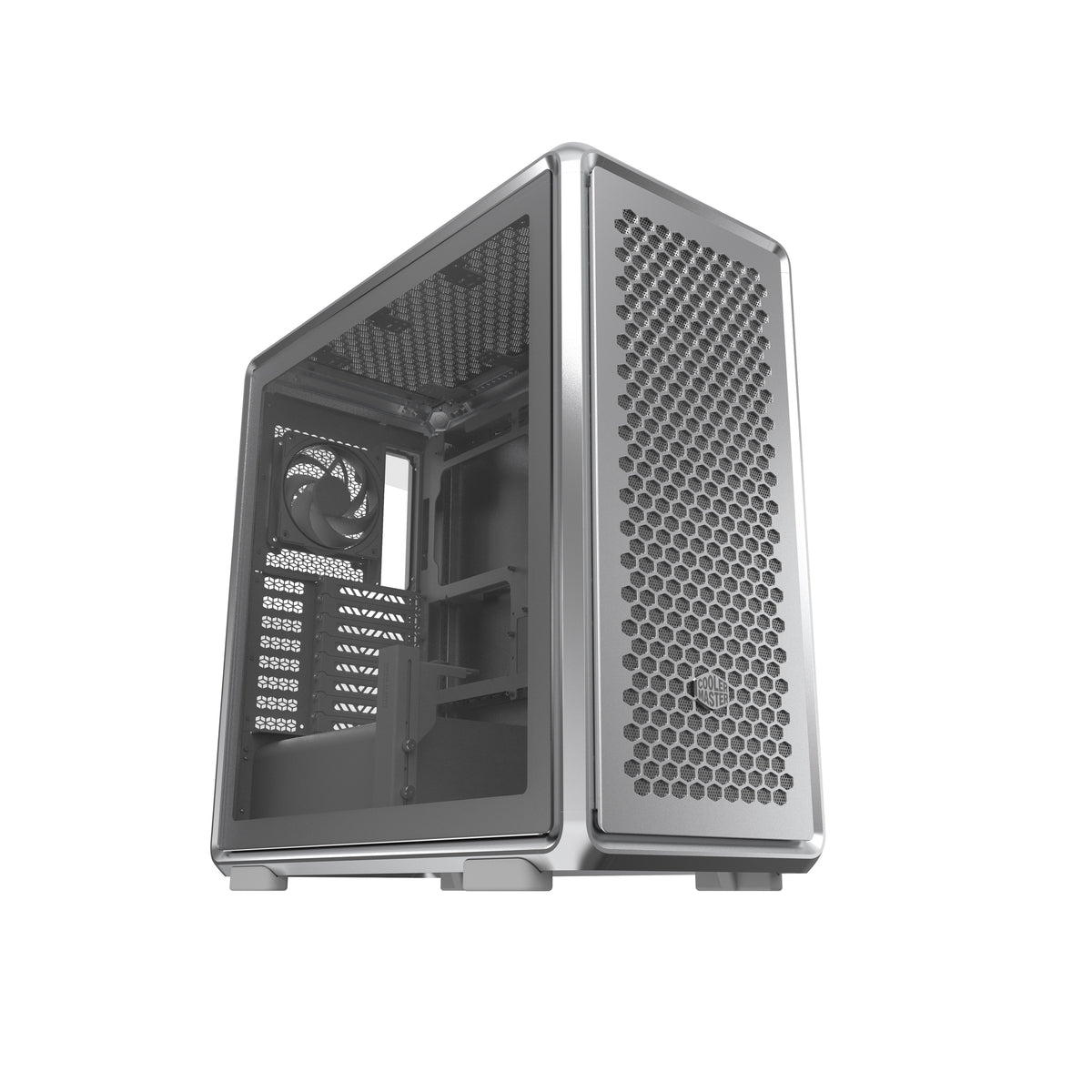

MASTERFRAME 600

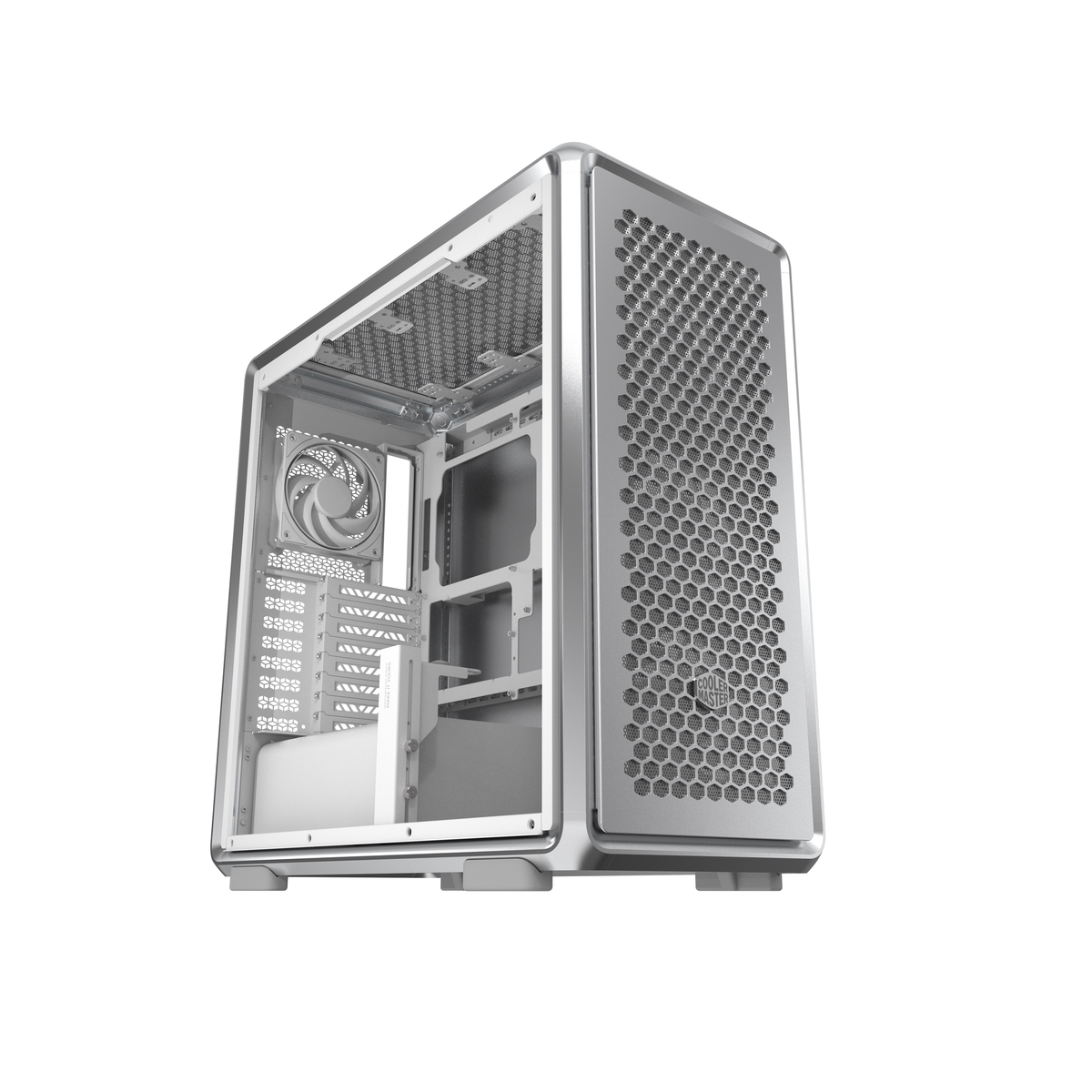

The MasterFrame 600 is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization.
Designed with Freeform 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
One Frame. Infinite Possibilities.
FEATURES
FreeForm 2.0 Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Versatile & Maker-Driven
Its open-source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Extensive Cooling Support
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Ample GPU Clearance
Accommodates graphics cards up to 485mm, offering plenty of space for high -end GPUs.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high - performance workloads, maintaining a clean and secure build.
PRODUCT SPECIFICATIONS
Product Information
Product Name - MasterFrame 600
Series - MasterFrame Series
Colour - Black / Silver
Model Number - MF600-KGNN-S00 (B) / MF600-SGNN-S00 (S)
Matertials
Exterior - SGCC Steel , Aluminum
Side Panel (Left / Right) - Tempered Glass / Aluminum
Dimension (L x W x H)
Incl. Protrusions - 531 x 261 x 544 mm
Excl. Protrusions - 514 x 261 x 514 mm
Volume (excluding protrusions) - 69 L
Harware Support
Motherboard Support - Mini-ITX , Mini-DTX , Micro-ATX , ATX , E-ATXx , SSI-CEBx (xCondit ional Support)
Power Supply Support - ATX
PCI Expansion Slots - 8
Storage Support
5.25" Drive Bays - 0
3.5" Drive Bays - 0
2.5" / 3.5" Drive Bays - 2
2.5" Drive Bays - 3

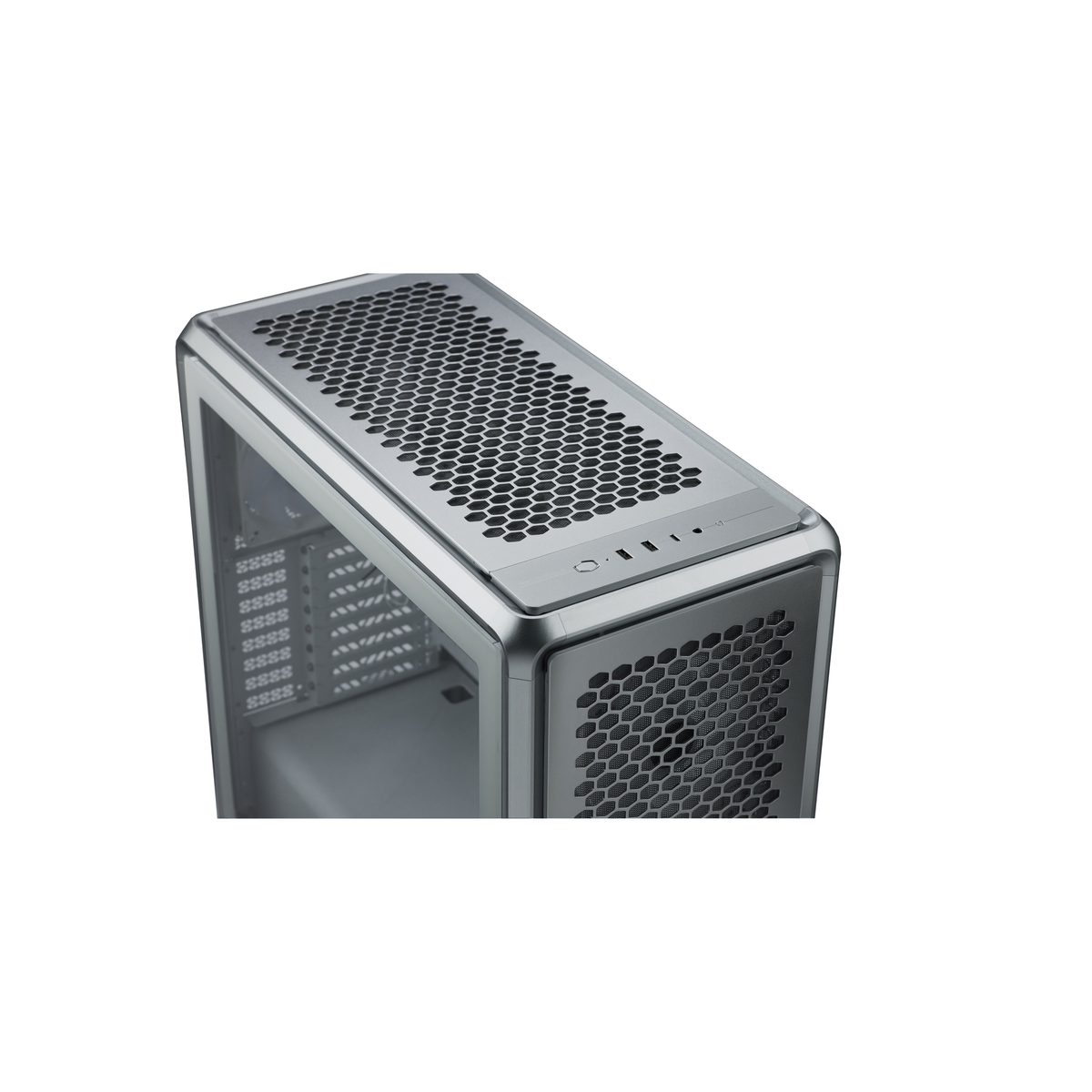

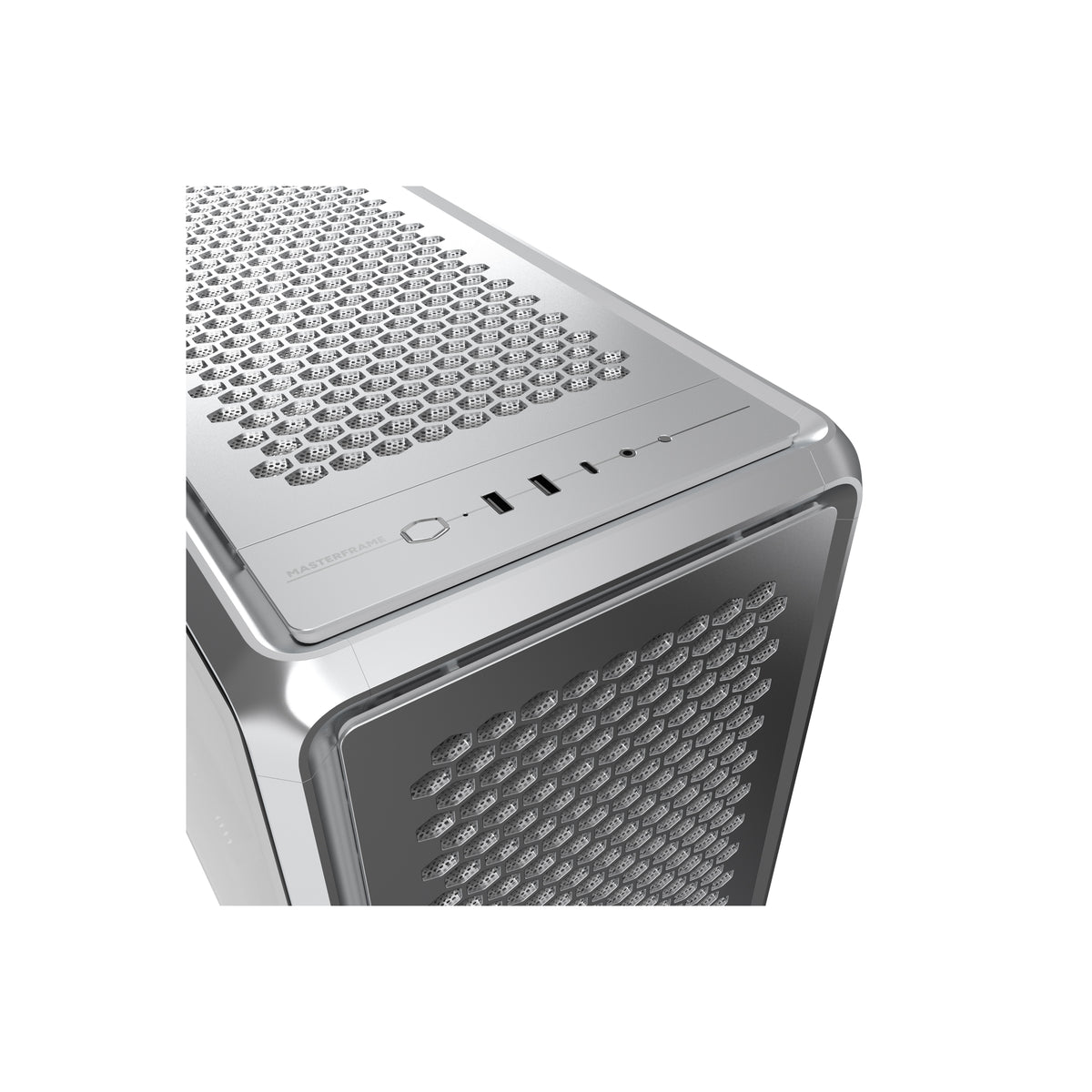

I/O Panel

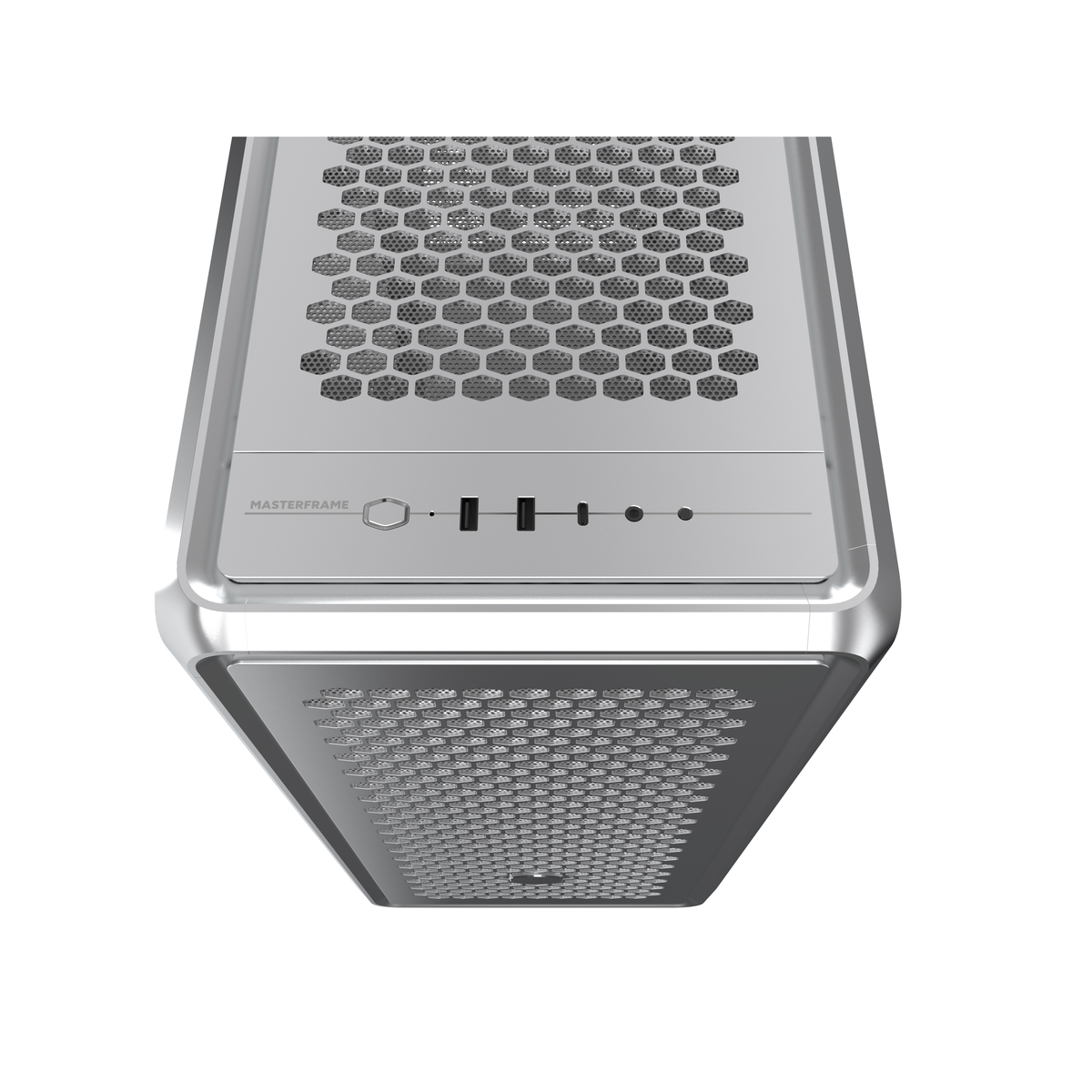

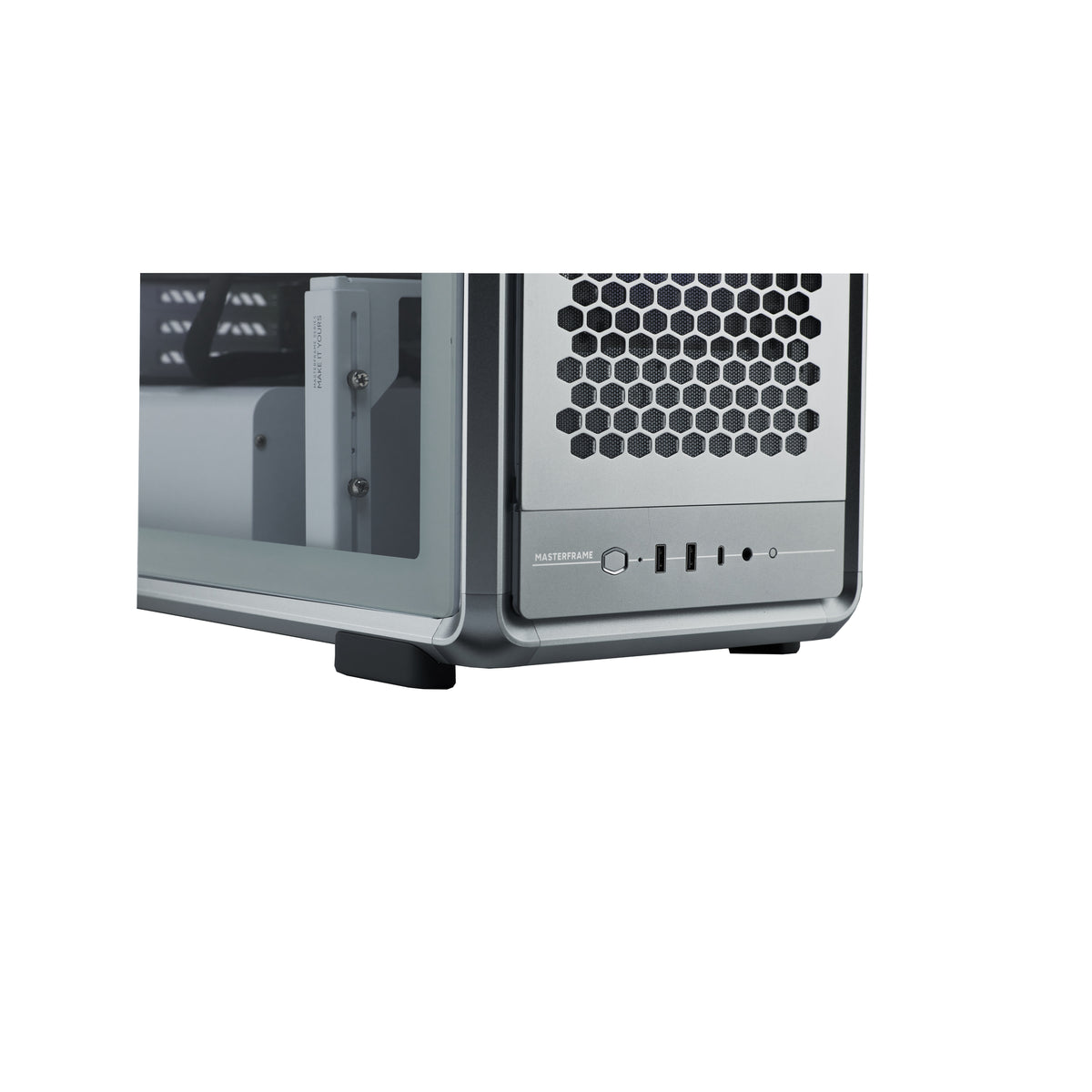

USB Ports - 2 x USB 3.2 Gen 1 Type-A , 1 x USB 3.2 Gen 2x2 Type-C
Audio In / Out - 1 x 3.5mm Headset Jack (Audio + Mic)
Preinstalled Fan
Front - 3 x Mobius 140 (B) / 3 x SickleFlow 140 ARGB (S)
Top - N/A
Rear - 1 x Mobius 120 (B) / 1 x SickleFlow 120 ARGB (S)
Fans Support
Front - 3 x 120 mm , 3 x 140 mm , 2 x 180 mm , 2 x 200 mm
Top - 3 x 120 mm , 2 x 140 mm , 2 x 180 mm , 1 x 200 mm
Rear - 1 x 120 mm
Side - 3 x 120 mm , 3 x 140 mm
Radiator Support
Front - 120 / 140 / 240 / 280 / 360 / 420 mm
Top - 120 / 140 / 240 / 280 / 360 / 420 mm
Rear - 120 mm
Side - 240 / 280 / 360 / 420 mm
Dust Filters
Removable Filters - Top , Front , Bottom , Right side panel
Clearances
CPU Cooler - 190 mm
Power Supply - 235 mm
Graphics Card - L: 485 mm (incl. power connector) , H: 190 mm (incl. power connector)
Additionals
Included Accessories - GPU Support Bracket (B) / GPU Support Bracket (S) / ARGB PWM Hub (S)
Cable Routing
Behind MB Tray - 43 mm
What's in the box
1 x MasterFrame 600 Mid-Tower ATX Case
3 x 140mm front fans
1 x 120mm rear fan
1 x GPU Support Bracket
4 x Dust Filters
1 x Mounting Hardware & Accessories
1 x User Manual
