Description
Bring your finest ideas to life in breathtaking detail.

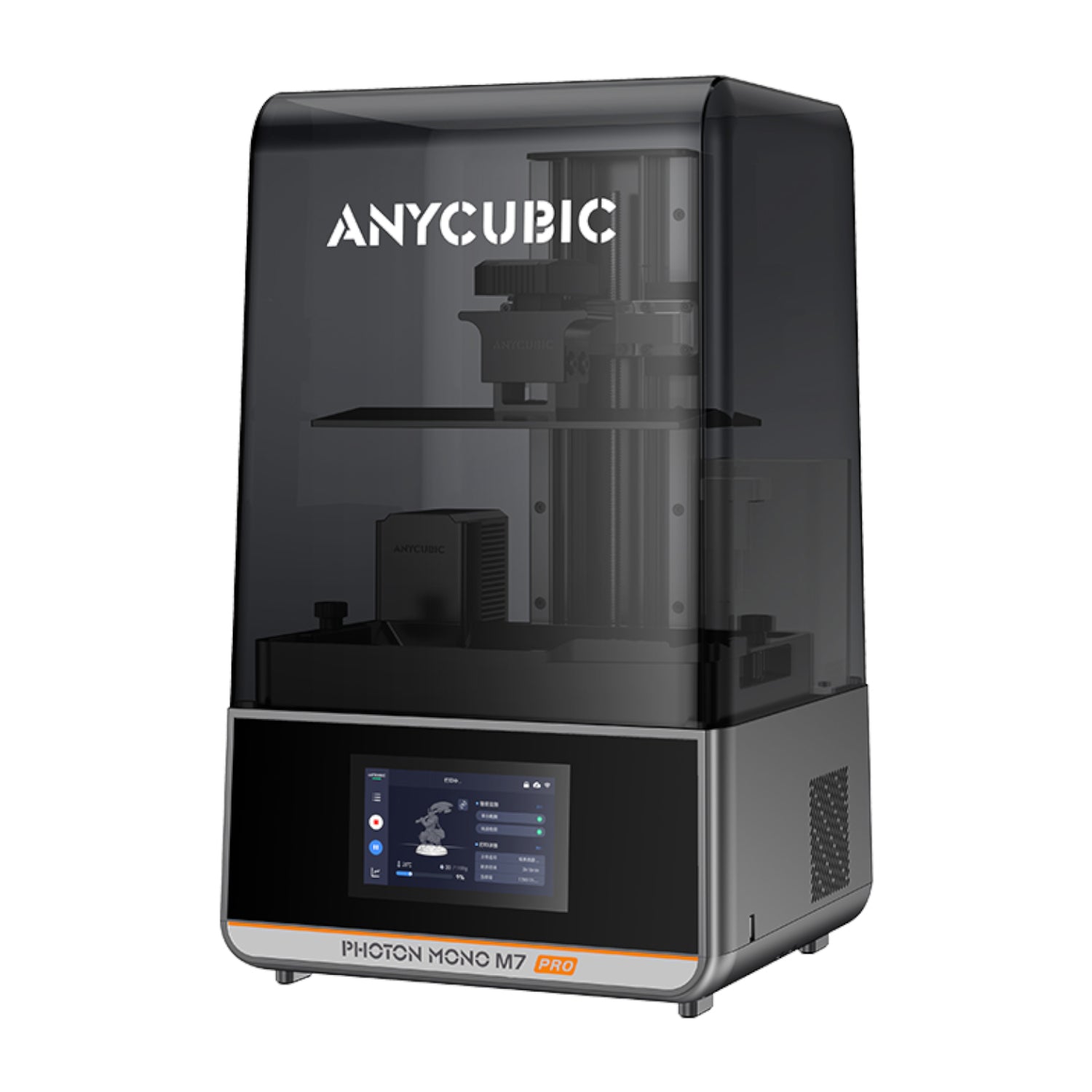

The Anycubic Photon Mono M7 Pro is a next-generation resin 3D printer built for makers who refuse to compromise on quality. At its heart sits a crisp 10.1-inch 14K monochrome LCD, resolving fine features down to a razor-sharp 16.8µm on the X/Y axis - so every miniature, prototype and precision part comes off the plate looking exactly as you imagined it.
Speed keeps pace with the detail. Paired with High-Speed Resin, the M7 Pro reaches printing speeds of up to 170mm/h, turning what used to be an overnight wait into a same-session result. And thanks to Auto-Adaptive Technology with dynamic temperature control, the printer keeps your resin in its ideal working range for consistent, repeatable prints - batch after batch.
It's designed to work smarter, not harder. Auto Resin Refill and Withdrawal tops up the vat and draws resin back automatically, so longer prints run unattended without the mess or the guesswork. A generous 223 × 126 × 230mm (6.5L) build volume gives you room for large single models or a full plate of miniatures, while a laser-engraved build plate, dual linear Z-axis rails with 10µm precision and a leveling-free design mean strong adhesion and reliable results straight out of the box.
Versatile by nature, the M7 Pro handles high-speed, water-washable, standard, ABS-like and plant-based resins, and connects your way over USB, Wi-Fi or LAN. With Photon Workshop and Chitubox support, a responsive 4.3-inch touchscreen and full Anycubic App integration, it's a resin 3D printer that fits effortlessly into your workflow - whether you're a hobbyist, a tabletop enthusiast or a professional chasing production-grade accuracy.
The Anycubic Photon Mono M7 Pro - precision, speed and effortless printing, ready for whatever you create next.
Features
- 10.1-inch 14K mono LCD screen for high-resolution resin printing
- 170mm/h with High-speed Resin
- Designed for detailed miniatures, prototypes, and precision parts
- Auto-Adaptive Technology Control Heating
- Auto Resin Refill, Withdrawal
- Resin-based photopolymer printing process
Specifications
- Printing Volume: 223 x 126 x 230mm³ (6.5L)
- Printing Speed: Max Speed ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h
- Layer Height Range: 0.01 – 0.15mm
- X/Y Axis Resolution: 16.8 × 24.8μm
- Light Source: COB Light Source+ Fresnel lens + Light Uniformity Algorithm
- Light Intensity: 5500 ±10% μW/cm²
- Material Compatibility: High-speed, Water-washable, Standard, ABS-like, and Plant-based Resins, etc
- Build Platform: Laser-engraved Build Plate
- Z-axis: Dual Linear Rails with 10 μm Precision
- Release film: Improved ACF Film
- Resin Vat: ≤1L
- Machine Leveling: Leveling-free
- Power Loss Resume: Not Supported
- Power Supply: 240W
- Protection Film: Replaceable Scratch-resistant Film
- Resin Auto-fill Unit: Supported
- Dynamic Temperature Control Resin Vat: Supported
- Slicing Software: Photon Workshop, Chitubox, Lychee Slicer (Scheduled)
- File Transfer: USB/Wi-Fi/LAN
- Hinged Cover: -
- Operating Screen: 4.3" Touch-Control
- Air Purifier: Optional Accessory
- LCD Screen: 10.1-inch Monochrome LCD, 14K Resolution
- Anycubic App: Supported
- Multilingual Support: EN / CN / DE / FR / IT / ES / RU / JP
- Machine Weight: 12 800g
- Product Dimensions: 312 x 315 x 520mm³
What's in the Box
- Anycubic Photon Mono M7 Pro 10.1" 14K Resin 3D Printer x1
- Print Platform x1
- Resin Vat x1
- Wi-Fi Antenna x1
- Hex Key Set x1
- Protective Equipment x1
- Filter x5
- Scrapers x2
- Leveling Paper x1
- USB Drive x1
- Power Cord x1
- Screen Protector Kit x1
- Auto-fill Unit x1
- User Manual x1
