Description
OVERVIEW
- Allow to select same HDMI source or two different sources output to two displays separately
- HDMI Specification 1.3b Compliant
- Support HDMI 36-bit Deep Color & x.v.Color wide color gamut
- Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
- HDMI firmware upgradeable, no compatible issue
- Easy operating with IR Remote
FEATURES

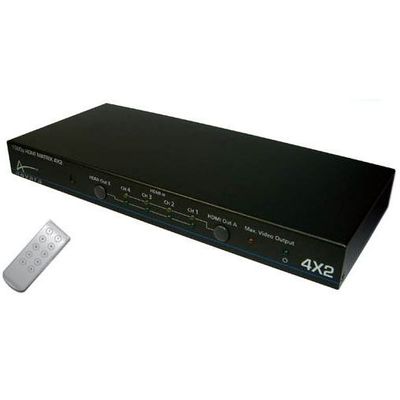

Aavara® PM4X2 1080p HDMI 1.3b MATRIX 4X2 is a switcher/splitter hub that offers you maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together. Each of the Four HDMI sources can be directed to any one of the two HDMI outputs so two displays/projector can show same source or two different sources simultaneously. It is compliant with Blu-ray DVD players and satellite set top boxes to any HDMI compatible display. Sources are accessible at any time to any display when operating with the IR remote. PM4X2 4x2 matrix switching allows maximum versatility for integrated systems.
PRODUCT SPECIFICATIONS
| Brand | Aavara |
| Item model number | PM4X2 |
| HDMI | 1.3b Compliant |
| HDCP | 1.2 Compliant |
| MATRIX 4X2 | Transmit same source or two different sources simultaneously |
| Max. Video Output Function | Allow to send to TV and Amp with Max. Video and Audio signal |
| Signal Rate | 6.75Gbps |
| Power Consumption | 5W |
| Video Bandwidth | 225 MHz |
| Single Link Range | Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution |
| Cable Length | 5M |
